View larger
Images are for illustrative purposes only. Please refer to data sheet for details

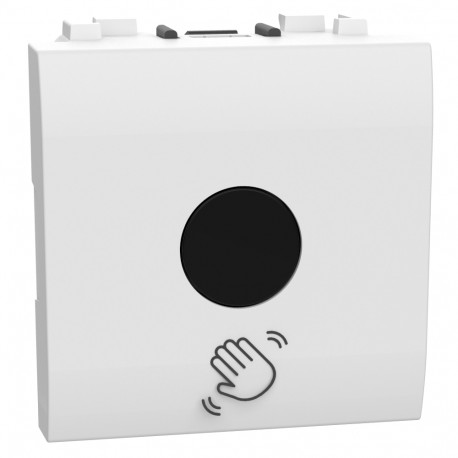

N4003TL BTCINO LL-CONM W/CONTACT LIGHT 2M BL
N4003TL
N4003TL
BTICINO
1 Pcs.
LL-CONM W/CONTACT LIGHT 2M BL
Livinglight White Touchless Lighting Switch
Automation > Movement sensor complete
LIVINGLIGHT MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Livinglight mechanisms for non-physical contact lighting - Detection distance: 6cm - supplied with finished front, to equip with decorative plates
| Model | Other |
|---|---|
| Motion sensor technology | Other |
| Constant light dimming | Yes |
| Control de HVAC | No |
| Forced connection | No |
| Forced disconnection | No |
| Animal Zone | No |
| Creep Protection/Field Monitoring | No |
| Background monitoring | No |
| Networkable | Yes |
| Optimal mounting height | 1.2 m |
| Stair Lighting Controller | No |
| Bypass switch | Yes |
| Suitable for wireless streaming | No |
| Remote control | No |
| With remote control | No |
| Adjustable response sensitivity | Yes |
| Adjustable response brightness | No |
| With signalling unit | No |
| Learn function for responsive brightness | No |
| Control function with control insert | No |
| Type of mounting | Recessed mounted (plaster) |
| Suitable for ceiling mounting | No |
| Suitable for wall mounting | No |
| Connection Method | Screw-on terminal |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Antibacterial treatment | No |
| Colour | White |
| RAL number (similar) | 9003 |
| Transparent | No |
| Protection Class (IP) | IP20 |
| Impact resistance | IK04 |
|---|---|
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Nominal Voltage | 230-230 V |
| Suitable for C-load | No |
| Number of switching zones | 0 |
| Maximum starting current | 2 A |
| Starting current min. | 0.5 A |
| Input Extensions | No |
| Alarm function | No |
| With acoustic sensor | No |
| Ambient Temperature | 5-40 °C |
| Width | 40 mm |
| Height | 40 mm |
| Depth | 43 mm |
| Mounting width | 40 mm |
| Installation Depth | 33 mm |
| Installation Length | 40 mm |
| Min. depth of the recessed box | 43 mm |
| With connection cable | No |
| Connection cable length | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | No |
| Terminal capacity | 1-1.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Label Space/Print Area | No |
| Type of cable entry feedthroughs | Flexible to cut |
| Distance between horizontal clamping centers | 3.5-3.7 mm |
| Circuit breaker | No |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 40 mm |
| With remote control (EF000483) | No |
| Bridging switch (EF001099) | Yes |
| Suitable for ceiling mounting (EF021180) | No |
| Staircase light controller (EF001098) | No |
| Connection type (EF000124) | Screwed terminal |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Min. depth of built-in installation box (EF012278) | 43 mm |
| Networkable (EF003904) | Yes |
| Response value sensitivity adjustable (EF003429) | Yes |
| RAL-number (similar) (EF003882) | 9003 |
| Animal zone (EF006311) | No |
| Model (EF000010) | Other |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 1.2 m |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Max. starting current (EF001732) | 2 A |
| Connection cable length (EF003636) | 0 mm |
| Depth (EF000049) | 43 mm |
| Temperature (EF001731) | 5 °C |
| Substation input (EF003876) | No |
| Suitable for C-load (EF003832) | No |
| Colour (EF000007) | White |
| Width (EF000008) | 40 mm |
| Built-in width (EF000846) | 40 mm |
| With connection cable (EF005036) | No |
| Built-in length (EF004265) | 40 mm |
| With signal unit (EF003890) | No |
| Suitable for wireless transmission (EF001198) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | No |
| Voltage type (EF000187) | AC |
| Surface finishing (EF006569) | Matt |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Forced switch off (EF003920) | No |
| Surface protection (EF000139) | Untreated |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 33 mm |
| Remote operation (EF003848) | No |
| Constant light control (EF003863) | Yes |
| With DALI interface (EF009569) | No |
| Nominal voltage (EF005127) | 230 V |
| Number of switching zones (EF009568) | 0 |
| IFTTT support available (EF011072) | No |
| Min. starting current (EF011992) | 0.5 A |
| Suitable for wall mounting (EF000664) | No |
| Creep-under protection (EF000147) | No |
| Forced switch on (EF011991) | No |
| Teach-function for response value luminosity (EF003898) | No |
| HVAC-control (EF003858) | No |
