View larger
Images are for illustrative purposes only. Please refer to data sheet for details

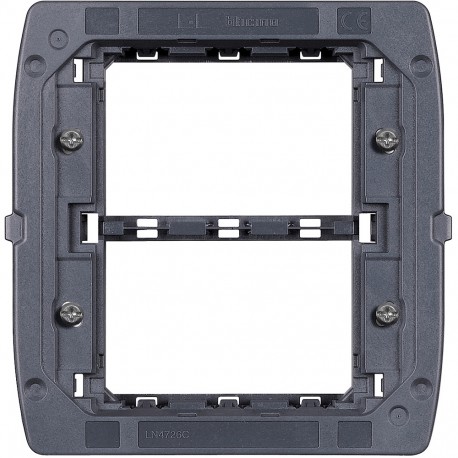

LN4726C BTCINO LL-SUPPORT AIR 3+3M
LN4726C
LN4726C
BTICINO
100 Pcs.
LL-SUPPORT AIR 3+3M
Support plates Livinglight AIR 3 + 3 modules
Livinglight AIR 3 + 3mod plate holder
Automation > Holder for modular domestic switching devices
LIVINGLIGHT MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Media - Support for plates Livinglight AIR 3 + 3 modulesGeneral characteristics
Livinglight Air - supports| Feature Name | Feature Value |
|---|---|
| With built-in installation box (EF025086) | Yes |
| With nail (EF000370) | No |
| Model (EF000010) | Other |
| Material (EF002169) | Plastic |
| Mounting method of the module inserts (EF009577) | Front |
| Material quality (EF001257) | Thermoplastic |
| Suitable for subfloor installation duct box (EF005864) | No |
| Mounting method (EF000003) | Mounting with screw |
| Suitable for mounting in round junction box 60 mm (EF009579) | No |
| With screws (EF005066) | Yes |
| Suitable for mounting on DIN-rail 35 mm (EF009580) | No |
| Suitable for wall duct (EF006572) | No |
| Number of modules vertical (module system) (EF009572) | 2 |
| Number of modules horizontal (module system) (EF009571) | 3 |
| Mounting direction (EF003824) | Vertical |
| Surface protection (EF000139) | Untreated |
| Flush-mounted installation (EF007517) | No |
