> BTICINO > LIVINGLIGHT MECHANISMS > LN4380N

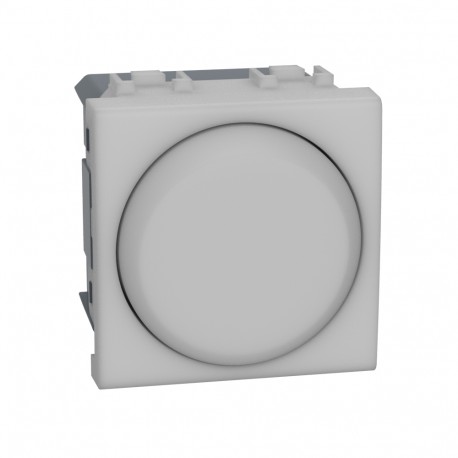

BTICINO LN4380N LN4380N BTCINO LL-FLASHLIGHT AUTO LED 230V 2M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LN4380N BTCINO LL-FLASHLIGHT AUTO LED 230V 2M

LN4380N

LN4380N

BTICINO

1 Pcs.

LL-FLASHLIGHT AUTO LED 230V 2M LL-AUTO LED FLASHLIGHT 230V 2M Lantern autonomous removable LED Livinglight - 2 module Livinglight LED Removable Standalone Flashlight - 2mod

Automation > Emergency luminaire
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Product features

Lamps - LED, 230 V~ high-brightness - independent Operation in the event of power outage - battery life of 2 h - Includes charging base - 2 batteries Ni-Cd - 2 modules, white light LEDS of high luminous efficiency. ON/OFF switch and push-button FICKLE for increasing the brightness when necessary. Replaceable batteries Ni-MH no memory effect. Includes front finishes white, tech and anthracite (in the same reference).

General characteristics

Livinglight - lighting, buoys, signaling and security

ETIM for LN4380N Luminaires (EC001957)
Feature Name Feature Value
Conductor cross section (EF000085) 1.5 mm²
With remote control (EF000483) No
Lamp type (EF002423) LED non-replaceable
Mounting method (EF000003) Built-in
Connection type (EF000124) Screw connection
Material cover (EF004284) Plastic opal
Built-in height/depth (EF023518) 33 mm
With remote switch connection (EF007947) No
Suitable for number of light sources (EF006436) 1
Number of lighting heads (EF004258) 1
Nominal current (EF009345) 450 mA
Impact strength (EF004293) IK02
Monitoring equipment (EF008091) None
Lamp holder (EF000048) Other
Height/depth (EF001456) 43 mm
With pictogram (EF011099) No
Width (EF000008) 44 mm
Type of control gear (EF000381) Not required
Degree of protection (IP) (EF005474) Other
Suitable for labelling type (EF001277) Other
Housing material (EF001596) Plastic
Voltage type (EF000187) AC
Housing colour (EF000136) Other
Light distributor (EF012170) Diffuser
With light source (EF005905) Yes
Function (EF000030) Escape route lighting
Type of wiring (EF011868) Ending
Nominal voltage (EF005127) 110 V
Power supply system (EF000233) Peripheral (individual battery)
Battery technology (EF004351) NiMH
Constant light output (CLO) (EF009482) Yes
Nominal operation time (EF012518) 2 h
Suitable for standby switching (EF017055) No
Length (EF001438) 44 mm
Suitable for continuous circuit (EF017056) Yes
Exchangeable control gear (EF016286) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
