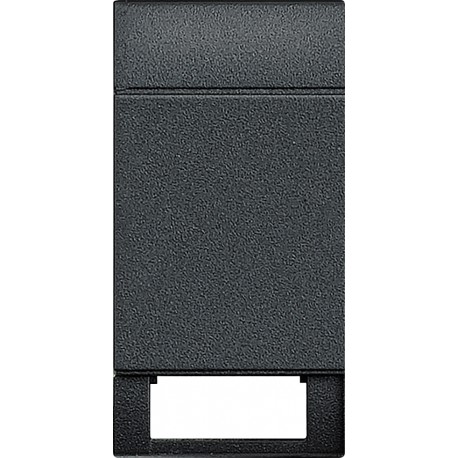

BTICINO L4915TN L4915TN BTCINO LL-KEY PEOPLE.1FUNC 1MOD ANTR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

L4915TN BTCINO LL-KEY PEOPLE.1FUNC 1MOD ANTR

L4915TN

L4915TN

BTICINO

10 Pcs.

LL-KEY PEOPLE.1FUNC 1MOD ANTR Key Livinglight customizable - 1 module - anthracite Customizable Livinglight key 1 function - 1mod - Anthracite

Automation > Control element/cover plate for domestic switching devices
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a Bticino L4915TN BTCINO LL-KEY PEOPLE.1FUNC 1MOD ANTR, this single-module rocker key is engineered for buzzer and signaling activation in modular wiring installations. It snaps into mounting frames to provide an anthracite-finished control point.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 42.4 mm
  • RAL-number (similar) (EF003882): 7015
  • Model (EF000010): One-part rocker
  • Material (EF002169): Plastic
  • Utilization (EF000133): Buzzer
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Suitable for degree of protection (IP) (EF006755): IP20
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): Yes
  • With label area (EF005040): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK00
  • Depth (EF000049): 7.2 mm

More info

▲

Product features

Customizable keys Livinglight - 1 module - Anthracite

General characteristics

Livinglight - keys

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
