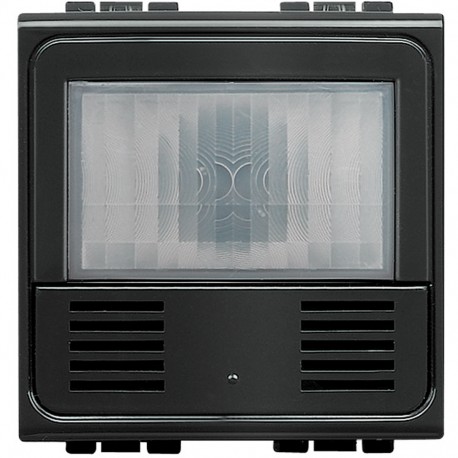

BTICINO L4658N L4658N BTCINO LL-SENSOR SCS IR+US ANTHRACITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

L4658N BTCINO LL-SENSOR SCS IR+US ANTHRACITE

L4658N

L4658N

BTICINO

1 Pcs.

LL-SENSOR SCS IR+US ANTHRACITE Motion Detector/brightness + button Livinglight MyHOME - anthracite PIR & US SCS Motion Detector - 2mod - Anthracite

Automation > Sensor element for movement sensor
DOMOTICS MY HOME

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Occupancy detection systems utilize advanced presence sensors like the L4658N BTCINO LL-SENSOR SCS IR+US ANTHRACITE to monitor interior environments and control lighting loads. By combining sensing technologies, these devices ensure reliable activation in complex commercial spaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for wireless transmission (EF001198): No
  • Staircase light controller (EF001098): No
  • With orientation lighting (EF008862): No
  • Material (EF002169): Plastic
  • Response value luminosity adjustable (EF007575): Yes
  • Mounting height (EF003874): 1.2 m
  • Mounting method (EF000003): Flush mounted
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): No
  • Min. switch-on time (EF006589): 30 s
  • Combination movement sensor/push button switch (EF016109): Yes
  • Compatible with Apple HomeKit (EF014925): No
  • Compatible with Amazon Alexa (EF014927): No
  • Detection angle horizontal (EF006582): 0 °
  • Compatible with Google Assistant (EF014926): No
  • Dim function with dimmer basic element (EF003808): No

More info

▲

Product features

Motion detector/brightness push-button integrated control - automatic with integrated control - presence Sensor dual technology IR passive and ultrasound - brightness Sensor - Surface coverage 5 m wide by 180° and depth of field of 9 m for an installation height of 1.2 m - auto On or manual switch on front panel and automatic power off according to the level of brightness the scene and of the presence detection - Timing shutdown deferred, and level of lux adjustable - Option to maintain a level of lux constant associating an actuator/dimmer - 2 modules Version Livinglight - complete with a bracket and a plate Livinglight - Anthracite

General characteristics

MyHOME home automation - BUS - automation - motion detectors
