> BTICINO > AUTONOMOUS LIGHTING MANAGEMENT > L4433N

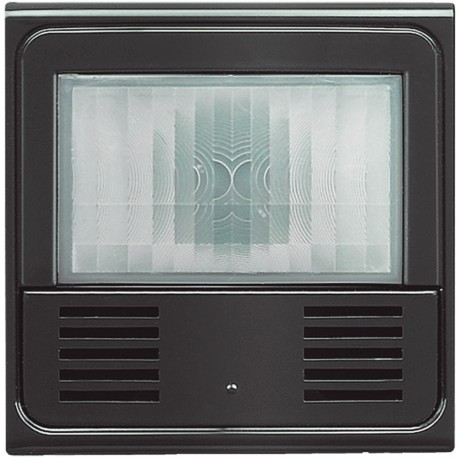

BTICINO L4433N L4433N BTCINO LL-SENSOR IR+US 2.5 TO 2M ANTR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

L4433N BTCINO LL-SENSOR IR+US 2.5 TO 2M ANTR

L4433N

L4433N

BTICINO

1 Pcs.

LL-SENSOR IR+US 2.5 TO 2M ANTR Detector 3-wire with neutral Livinglight - 2 modules - Anthracite 3-wire detector with neutral Livinglight - 2mod - Anthracite

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An L4433N BTCINO LL-SENSOR IR+US 2.5 TO 2M ANTR functions as an active presence detector for modern building management systems. Utilizing dual technologies, such units automate lighting and HVAC control by sensing human occupancy within targeted indoor zones, thereby optimizing energy efficiency across commercial spaces.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Bridging switch: No
  • Staircase light controller: No
  • Material quality: Thermoplastic
  • Mounting method: Flush mounted
  • Min. switch-on time: 5 s
  • Compatible with Apple HomeKit: No
  • Detection angle horizontal: 180 °
  • Compatible with Amazon Alexa: No
  • Compatible with Google Assistant: No
  • Networkable: No
  • Animal zone: No
  • Model: Presence detector
  • With alarm function: No
  • Optimum mounting height: 1.2 m
  • Anti-bacterial treatment: No
  • With acoustic sensor: No

More info

▲

Product features

Presence Detector with neutral - Dual tech Infrared and Ultrasound, which allows a detection of presence accurate - Check the natural luminosity continuously and not only at the time of detection - Powers that are supported according to the type of lamp: - Led : 0 to 250 W - Fluocompactas : 0 to 250 W - LEDs, CFLs, Halogens, tube fluo transformer with ferromagnetic or electronic: 0 to 1000 VA - Halogen 230 V, incandescent : 0 to 2000 W - Possibility of installing up to 10 detectors in parallel - Possibility of manual control with additional thanks to the push-button built-in - Timing adjustable from 5 s to 30 min - Brightness adjustable 5 lux to 1275 lux - Consumption in standby: 0.4 W - Power supply 230 Vac - 3-wire - 2 modules - Anthracite

General characteristics

Livinglight - detectors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
