> BTICINO > AUTONOMOUS LIGHTING MANAGEMENT > L4432

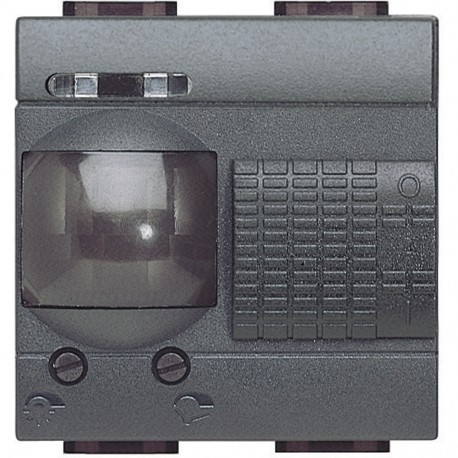

BTICINO L4432 L4432 BTCINO LL-IR SENSOR 6A 2M ANTR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

L4432 BTCINO LL-IR SENSOR 6A 2M ANTR

L4432

L4432

BTICINO

1 Pcs.

LL-IR SENSOR 6A 2M ANTR LL-SENSOR IR 6A 2M ANTR Detector 3-wire with neutral exclusion Livinglight - 2 modules - Anthracite 3-wire detector with neutral exclusion Livinglight - 2mod - Anthracite

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The L4432 BTCINO LL-IR SENSOR 6A 2M ANTR by Bticino is a movement sensor engineered for flush-mounted wall applications. These detection devices are broadly deployed across commercial buildings to activate lighting loads automatically upon sensing infrared radiation from occupants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bridging switch (EF001099): No
  • Staircase light controller (EF001098): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Min. switch-on time (EF006589): 30 s
  • Compatible with Apple HomeKit (EF014925): No
  • Detection angle horizontal (EF006582): 105 °
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Networkable (EF003904): No
  • Animal zone (EF006311): No
  • Model (EF000010): Movement sensor
  • With alarm function (EF005624): No
  • Optimum mounting height (EF008011): 1.2 m
  • Anti-bacterial treatment (EF023790): No
  • With acoustic sensor (EF017675): No

More info

▲

Product features

Detector 3-wire, with neutral, to the exclusion of - Power type of lamps: - Halogen 230 V, incandescent : 0 to 1200 W - Halogen with transformer ferromagnetic: 0 to 1200 VA - Tubes fluo : 0 to 450 VA - Possibility of forcing the detector in mode ON, Automatic or OFF by the cursor 3 positions - additional option of controlling manually by push button - Timer 30 s to 10 min. - Brightness threshold from 5 lux to 2000 lux - detection Angle 105° - detection Distance 6 m - Power supply 230 Vac - 3-wire - 2 modules - Anthracite

General characteristics

Livinglight - detectors
