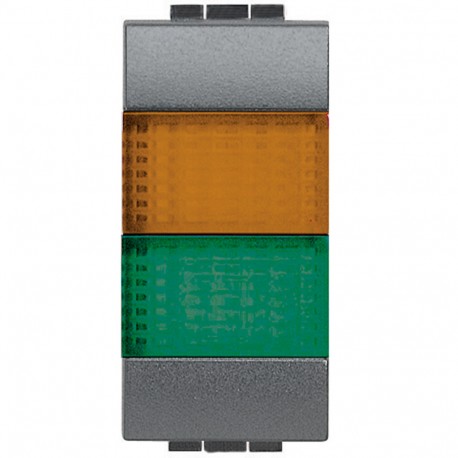

BTICINO L4372AV L4372AV BTCINO LL-DIFUS NAR./GREEN 1M ANTR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

L4372AV BTCINO LL-DIFUS NAR./GREEN 1M ANTR

L4372AV

L4372AV

BTICINO

1 Pcs.

LL-DIFUS NAR./GREEN 1M ANTR Beacon light Livinglight - diffuser orange/green - Anthracite - 1 module Livinglight light signaler - orange/green diffuser - Anthracite - 1mod

Automation > Information light signal for domestic switching devices
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The L4372AV BTCINO LL-DIFUS NAR./GREEN 1M ANTR built by Bticino acts as a dual-color light signal diffuser designed to provide distinct optical alerts within modular flush-mounted electrical applications. These units help operators distinguish between multiple operational states on control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Max. lamp power (EF000260): 0.15 W
  • Material (EF002169): Plastic
  • Surface finishing (EF006569): Matt
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • Mounting method (EF000003): Flush mounted
  • Nominal voltage (EF000002): 230 V
  • Transparent (EF006243): No
  • Min. depth of built-in installation box (EF012278): 37 mm
  • Surface protection (EF000139): Untreated
  • With light source (EF005905): Yes
  • With fixed symbol/imprint (EF007949): Yes
  • RAL-number (similar) (EF003882): 7016
  • With flashlight (EF006575): No
  • Suitable for degree of protection (IP) (EF006755): IP2X
  • Device depth (EF008810): 38 mm

More info

▲

Product features

Beacon light Diffuser orange/green - 1 module - Anthracite

General characteristics

Livinglight - lighting, buoys, signaling and security
