BTICINO L4371V L4371V BTCINO LL-DIFUS GREEN 1M ANTR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

L4371V BTCINO LL-DIFUS GREEN 1M ANTR

L4371V

L4371V

BTICINO

10 Pcs.

LL-DIFUS GREEN 1M ANTR Beacon light Livinglight - diffuser green - Anthracite - 1 module Livinglight light signaler - green diffuser - Anthracite - 1mod

Automation > Information light signal for domestic switching devices
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

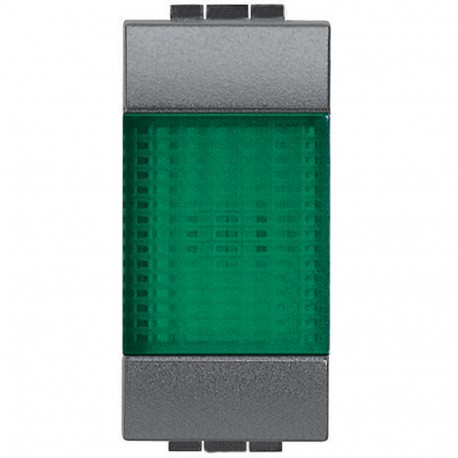

A colored indicator lens functions as a targeted signaling accessory within wall-mounted wiring devices, providing localized optical status alerts. The Bticino L4371V ll-difus green 1m antr integrates into compatible anthracite frames to emit a clear green visual signal.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Max. lamp power (EF000260): 0.15 W
  • Material (EF002169): Plastic
  • Surface finishing (EF006569): Matt
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • Mounting method (EF000003): Flush mounted
  • Nominal voltage (EF000002): 230 V
  • Transparent (EF006243): No
  • Min. depth of built-in installation box (EF012278): 37 mm
  • Colour light source (EF001402): Green
  • Surface protection (EF000139): Untreated
  • With light source (EF005905): Yes
  • With fixed symbol/imprint (EF007949): Yes
  • RAL-number (similar) (EF003882): 7016
  • With flashlight (EF006575): No
  • Suitable for degree of protection (IP) (EF006755): IP2X

More info

▲

Product features

Beacon light Diffuser green - 1 module - Anthracite

General characteristics

Livinglight - lighting, buoys, signaling and security

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
