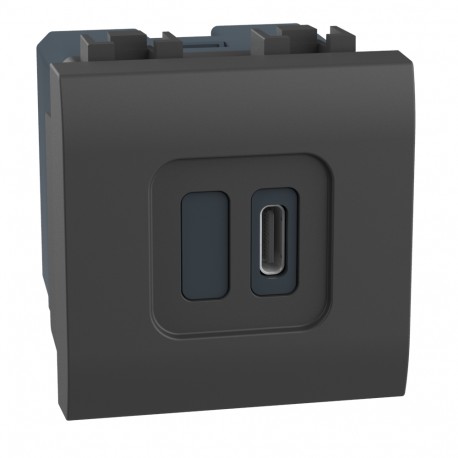

BTICINO L4288C2 L4288C2 BTCINO LL-BASE USB TYPE C 3A 30W ANTR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

L4288C2 BTCINO LL-BASE USB TYPE C 3A 30W ANTR

L4288C2

L4288C2

BTICINO

1 Pcs.

LL-BASE USB TYPE C 3A 30W ANTR Livinglight USB Charger - 1 USB Type C - Power Delivery - 3,000 mA - 30 W - 2 modules - Anthracite Livinglight USB Charger - 1 USB Type C - 30W- 2mod - Anthracite

Automation > USB power supply
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

USB charger type L4288C2 BTCINO LL-BASE USB TYPE C 3A 30W ANTR delivers high-output power conversion specifically configured for USB Type-C compatible devices. Such flush-mounted modules are extensively utilized in modern architectural designs to support rapid charging requirements for laptops, tablets, and phones.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 45.6 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 1
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.059 W
  • Device width (EF008808): 43.8 mm
  • Device height (EF008809): 47 mm
  • Colour (EF000007): Anthracite
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 7015
