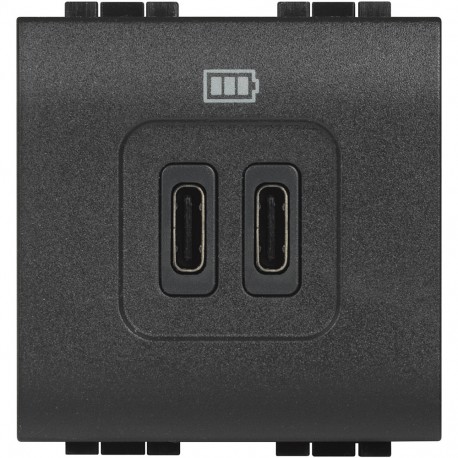

BTICINO L4286C2 L4286C2 BTCINO LL-BASE USB C+C 3A/5V 2M ANTR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

L4286C2 BTCINO LL-BASE USB C+C 3A/5V 2M ANTR

L4286C2

L4286C2

BTICINO

1 Pcs.

LL-BASE USB C+C 3A/5V 2M ANTR Base USB charger (C+C) Livinglight - 3 To - 5 V - 230 V - 2 modules - Anthracite USB (C+C) Livinglight Charger Base - 3A - 5V - 230V - 2mod - Anthracite

Automation > USB power supply
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A L4286C2 BTCINO LL-BASE USB C+C 3A/5V 2M ANTR is an integrated USB charging outlet built for flush integration into architectural wall plates and mounting frames. These units convert alternating line current into safe, low-voltage direct current to charge consumer electronics. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 43 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 2
  • Min. depth of built-in installation box (EF012278): 42 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.064 W
  • Device width (EF008808): 44 mm
  • Device height (EF008809): 44 mm
  • Colour (EF000007): Anthracite
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 7015

More info

▲

Product features

Universal chargers USB - Compliant to the standard IEC 62684-2011-01 - Allow the quick charging of mobile phones, tablets, smartphones, MP3, MP4 - Release space for bases of power - Consumption standby < 0.1 W - Class II TBTS - According to the EEC directive on the harmonization of the standard recharging of portable terminals and the reduction of chargers, mobile - Supplied without cable - 5 V - 230 V - Charger dual-USB 3 A - Type C + C - 2 modules - Anthracite

General characteristics

Livinglight - USB chargers

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
