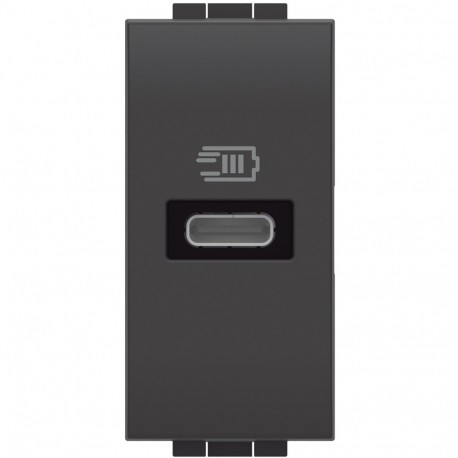

BTICINO L4192C L4192C BTCINO LL-BASE USB C 3A/5V 1M ANTR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

L4192C BTCINO LL-BASE USB C 3A/5V 1M ANTR

L4192C

L4192C

BTICINO

1 Pcs.

LL-BASE USB C 3A/5V 1M ANTR Livinglight Single USB Charger Base - Type C - Anthracite - 1 module

Automation > USB power supply
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Integrating this L4192C Bticino Ll-Base Usb C 3a/5v 1m Antr allows technicians to embed a single USB-C charging interface within compact, flush-mounted electrical layouts. Such units are standard additions to structured wiring setups, providing dedicated power delivery points in commercial rooms. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 1
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.048 W
  • Device width (EF008808): 22 mm
  • Device height (EF008809): 44 mm
  • Colour (EF000007): Anthracite
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 7015

More info

▲

Product features

USB C chargers - 3A/5V - 20W - With PowerDelivery that allows fast charging of mobiles, tablets, smartphones, MP3, MP4 - Standby consumption0.1 W - Class II TBTS - Supplied without cable - 1 module - Anthracite

General features

Livinglight - USB chargers
