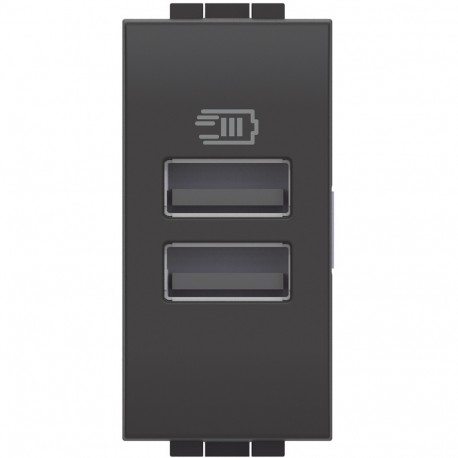

BTICINO L4191AA L4191AA BTCINO LL-BASE USBA+A 3A/5V 1M ANTR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

L4191AA BTCINO LL-BASE USBA+A 3A/5V 1M ANTR

L4191AA

L4191AA

BTICINO

1 Pcs.

LL-BASE USBA+A 3A/5V 1M ANTR Livinglight USB Dual Charger Dock - Type A+A - Anthracite - 1 module Livinglight USB Double Charger Base - Type A+A - Anthracite - 1mod

Automation > USB power supply
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

USB charger type L4191AA BTCINO LL-BASE USBA+A 3A/5V 1M ANTR is engineered for flush-mounted wall installations to supply steady direct current power to everyday electronics. Wall-integrated charging modules are commonly installed in office buildings, hotels, and modern residential structures to provide convenient device charging directly from standard electrical back boxes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.083 W
  • Device width (EF008808): 22 mm
  • Device height (EF008809): 44 mm
  • Colour (EF000007): Anthracite
  • Number of ports USB-A (EF000997): 2
  • RAL-number (EF000116): 7015

More info

▲

Product features

USB chargers A + A - 3A / 5V - 15W - Allow fast charging of mobiles, tablets, smartphones, MP3, MP4 - Free space for power bases - Consumption at rest0.1 W - Class II TBTS - Supplied without cable - 1 module - Anthracite

General features

Livinglight - power bases

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
