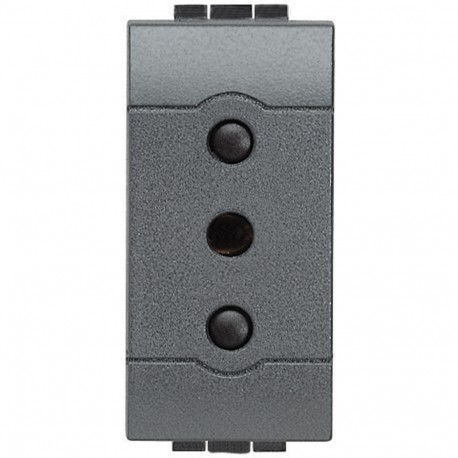

BTICINO L4113 L4113 BTCINO LL-IT BASE 2P+T 10A 1M ANTR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

L4113 BTCINO LL-IT BASE 2P+T 10A 1M ANTR

L4113

L4113

BTICINO

10 Pcs.

LL-IT BASE 2P+T 10A 1M ANTR LL-BASE IT 2P+T 10A 1M ANTR 2P+T Livinglight - standard Italian - connection by screws - Anthracite - 1 module 2P+T Livinglight Base - Italian Standard - Anthracite - 1mod

Automation > Socket outlet
LIVINGLIGHT MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino LL-IT BASE 2P+T 10A 1M ANTR (L4113) functions as a standard socket outlet utilized in wall installations to deliver stable electrical connections for everyday loads. These outlets interface directly with compatible plugs to maintain safe and continuous power flow.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 10 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 1
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 36 mm

More info

▲

Product features

Bases 2P+T standard Italian - 16 A - 250 V~ - Distance between sockets 19 mm - Connection by screws - With shutter protection - 1 module - Anthracite

General characteristics

Livinglight - bases of power
