View larger
Images are for illustrative purposes only. Please refer to data sheet for details

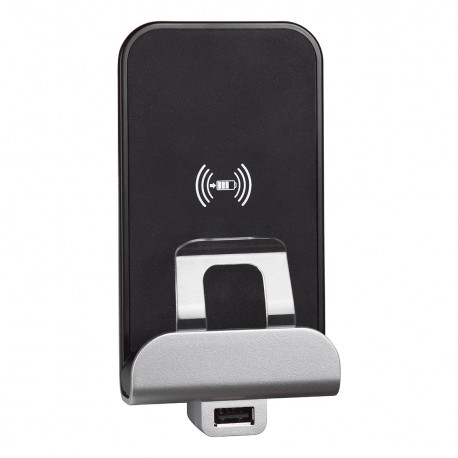

KW4286CW2 BTCINO LN-BASE USBA 3A/5V+INDUC. WHITE
KW4286CW2
KW4286CW2
BTICINO
1 Pcs.
LN-BASE USBA 3A/5V+INDUC. WHITE
Induction Charger Dock + Living Now USB Type-A Dock - White - 2 Modules
Induction charging base + USB Type A base Living Now - White - 2mod
Automation > USB power supply
LIVING NOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Universal induction and USB chargers - Induction charging: 1 A - USB type A - 3 A - 5 V - 230 Vac - Allows fast and wireless recharging of a smartphone equipped with an induction receiver - Adapter to bed headboards and workspaces - According to the WPC QI (Wireless Power Consortium) standard - According to the EN- 62479 standard (EMC emission) - Anti-theft lock function - Possibility of mounting in horizontal multi-position - Dimensions 136.5 x 70 x 56.5 mm - To be combined with bracket and trim plate - 2 modules - WhiteGeneral features
Living Now - induction charger bases| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Module frame/grid |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 110 V |
| Device depth (EF008810) | 60 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Min. depth of built-in installation box (EF012278) | 43 mm |
| Device width (EF008808) | 70 mm |
| Device height (EF008809) | 136 mm |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9003 |
| Max. output current (EF001315) | 3000 mA |
| Frequency (EF000416) | 50 Hz |
