BTICINO KW4180 KW4180 BTCINO LN-BASE IT 2P+T 16A 1M BLAN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

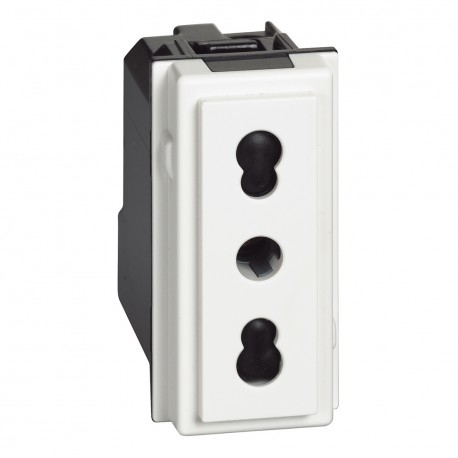

KW4180 BTCINO LN-BASE IT 2P+T 16A 1M BLAN

KW4180

KW4180

BTICINO

10 Pcs.

LN-BASE IT 2P+T 16A 1M BLAN Base 2P+T Living Now - Italian standard - connection by screws - white - 1 module 2P+T Living Now Base - Italian Standard - White - 1mod

Automation > Socket outlet
LIVING NOW

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The KW4180 BTCINO LN-BASE IT 2P+T 16A 1M BLAN is a compact single-module power socket insert tailored for installations where panel space is restricted. One-module devices allow high-density electrical configuration in narrow wall boxes and multi-function cover plates. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection: No
  • Nominal current: 16 A
  • Rotated central insert: No
  • Material quality: Thermoplastic
  • Mounting method: Flush mounted
  • Special power supply: EV006426
  • Connection type: Screwed terminal
  • Fault current protection: No
  • Nominal voltage: 250 V
  • Number of modules (module system): 1
  • Compatible with Apple HomeKit: No
  • Eject-mechanism: No
  • Compatible with Amazon Alexa: No
  • Compatible with Google Assistant: No
  • Number of ports USB-C: 0
  • Min. depth of built-in installation box: 38 mm

More info

▲

Product features

Italian standard 2P+T bases - 10 A - 250 Vac - Distance between alveoli between 19 mm and 26 mm - Connection by screws - With protective shutters - 1 module - To be combined with KW02 front, support and trim plate - White

General features

Living Now - international mainstream bases
