KW41 BTCINO LNWN COMMAND KEY D/N 1M BL
KW41
KW41
BTICINO
1 Pcs.
LNWN COMMAND KEY D/N 1M BL
2P+T Living Now Base - Italian Standard - Screw Connection - White - 1 module
Living Now w/Netatmo key for wireless command "Day/Night" - White - 1mod
Automation > Control element/cover plate for domestic switching devices
LIVING NOW WITH NETATMO
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This is a KW41 BTCINO LNWN COMMAND KEY D/N 1M BL switch/push button from Bticino. Rocker keys serve as manual actuation interfaces for underlying electrical switches, allowing users to safely control lighting and power distribution loops.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 86 mm
- RAL-number (similar) (EF003882): 9003
- Model (EF000010): One-part rocker
- Material (EF002169): Plastic
- Utilization (EF000133): Switch/push button
- Monitoring window/light outlet (EF003864): Yes
- Surface finishing (EF006569): Matt
- Type of fastening (EF002442): Engage (snap)
- Material quality (EF001257): Thermoplastic
- Halogen free (EF000025): Yes
- With exchangeable lens/symbol (EF006039): No
- With label area (EF005040): No
- Scannable symbol/barrier free (EF012306): No
- Anti-bacterial treatment (EF023790): No
- Impact strength (EF004293): IK04
- Imprint/indication (EF003823): Various symbols
More info
▲

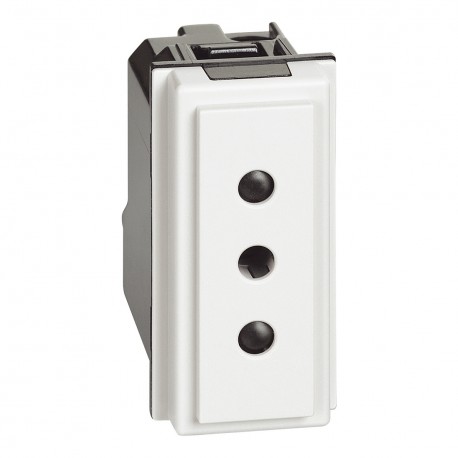

Italian standard 2P+T bases - 10A - 250 Vac - Distance between alveoli of 19mm - Screw connection - With protection shutters - 1 module -To be combined with KW02 front, support and decorative plate - White.
| Model | Italian Type P11 |
|---|---|
| Protective contact | Round |
| Number of active (round) contacts | 1 |
| Number of active contacts (drawings) | 0 |
| Type of mounting | Basic element with center cover plate, Recessed mounted (plaster) |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of sockets | 1 |
| Phase-separated power outlets | No |
| Number of modules (in case of modular design) | 1 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | Other |
| Connection Method | Screw-on terminal |
| With flip-top lid | No |
| With enhanced contact protection | Yes |
| Label Space/Print Area | No |
| Colour | White |
| RAL number (similar) | 9003 |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | No |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | none |
| Attachment Type | Hemming |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
|---|---|
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Antibacterial treatment | No |
| With loop function | No |
| With on/off switch | No |
| Rotated center insert | No |
| Nominal intensity | 10 A |
| Nominal Voltage | 250 V |
| frequency | 45-55 Hz |
| Suitable for protection grade (IP) | IP20 |
| Impact resistance | Other |
| Device width | 22 mm |
| Device height | 45 mm |
| Device Depth | 38 mm |
| Min. depth of the recessed box | 38 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For server conditions according to VDE | No |
| Installation Depth | 28 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -5-35 °C |
| Type of voltage | AC |
| Power Delivery | No |
| Prewired | No |
| Terminal capacity | 2.5-4 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 2.5-4 mm² |
| Cable Holder | Cable glands |
| Connected Object | No |
