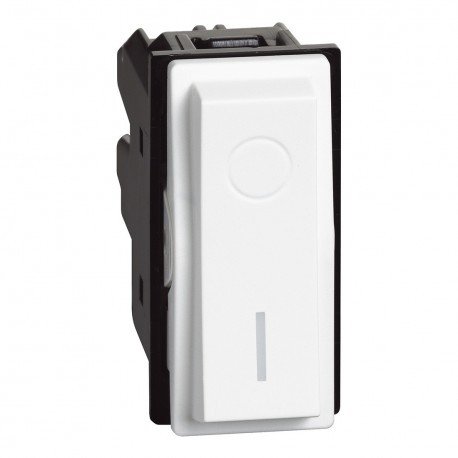

BTICINO KW40 KW40 BTCINO LNWN 1M I/O BL KEY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KW40 BTCINO LNWN 1M I/O BL KEY

KW40

KW40

BTICINO

1 Pcs.

LNWN 1M I/O BL KEY Living Now bipolar switch - illuminable - 16AX - 250Vac - White - 1 module Living Now w/Netatmo key for wireless stage command - White - 1mod

Automation > Control element/cover plate for domestic switching devices
LIVING NOW WITH NETATMO

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Bticino KW40 BTCINO LNWN 1M I/O BL KEY is a standard rocker actuator engineered for digital control and switching applications. These components are typically mounted into modular wiring frames to facilitate manual input operations for automation controllers and standard electrical circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 86 mm
  • RAL-number (similar) (EF003882): 9003
  • Model (EF000010): One-part rocker
  • Material (EF002169): Plastic
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK04
  • Imprint/indication (EF003823): Various symbols

More info

▲
Lighting mechanisms - Bipolar switch - 2P - 16AX - 250Vac - Automatic terminal - Becomes luminous or pilot with LED signaling lamps -To be combined with key, support and decorative plate - 1 module - White.
Cabling System1-pole disconnect switch
Type of operationRocker/button
Type of mountingModule for system interruption program, Recessed mounted (plaster)
Number of modules (in case of modular design)1
Push Button SwitchYes
Attachment TypeLock in position
With mounting plateNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishMate
ColourWhite
RAL number (similar)9003
Switching element colorWhite
Label space/print surfaceNo
LightingOptional
Lighting functionOrientation
Lighting TypeOther
Suitable for protection grade (IP)IP21
Impact resistanceIK04
Nominal Voltage250 V
Nominal current16 A
Monitoring contactsNo
Connection MethodScrew-on terminal
Heating switchNo
Washing machine switchNo
Device width22 mm
Device height45 mm
Device Depth41 mm
Installation Depth28 mm
Min. depth of the recessed box38 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature-5-35 °C
Storage temperature-5-35 °C
Type of voltageAC
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsNo
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
