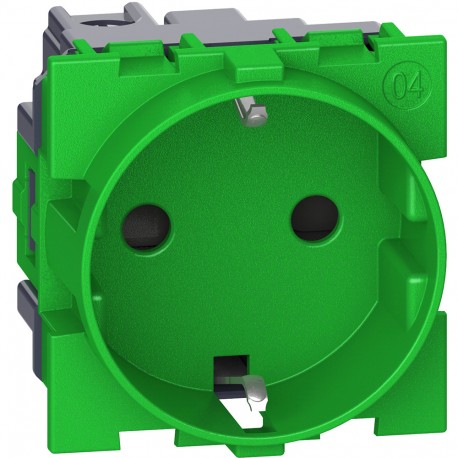

BTICINO KV4141 KV4141 BTCINO LN-BASE 2P+T 16A/230V 2M GREEN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KV4141 BTCINO LN-BASE 2P+T 16A/230V 2M GREEN

KV4141

KV4141

BTICINO

10 Pcs.

LN-BASE 2P+T 16A/230V 2M GREEN Base 2P+T Living Now - connection by screws - green - 2 modules 2P+T Living Now Base - 16A/250V - Green - 2mod

Automation > Socket outlet
LIVING NOW

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The KV4141 BTCINO LN-BASE 2P+T 16A/230V 2M GREEN is a specialized power socket insert designed for flush installation within standard wall distribution boxes. Receptacles of this kind deliver dependable electrical service to portable loads in offices and industrial workspaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 41.5 mm

More info

▲

Product features

Bases 2P+T - 16 A - 250 Vac - Connection by screws - With protection shutters - 2 modules - For installation in 2 modules combine with front ref. KV04, support and trim plate - Green

General features

Living Now - current bases
