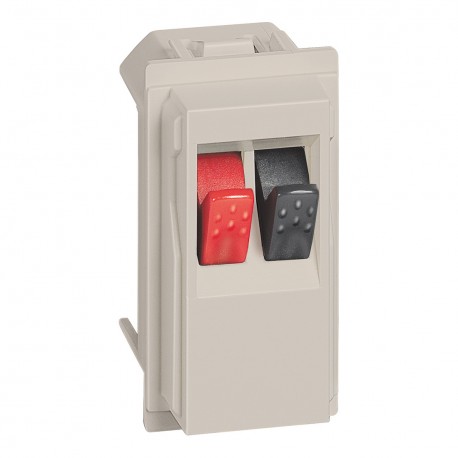

KM4294 BTCINO LN- BASE HI-FI 1M SAND
KM4294
KM4294
BTICINO
5 Pcs.
LN- BASE HI-FI 1M SAND
Hi-FI Living Now audio base - sand - 1 module
HI Audio Base - FI Living Now - Sand - 1mod
Automation > Insert/cover for communication technology
LIVING NOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
HI-FI audio bases for speakers - For stereo audio link of the speakers - Bornes of 4 mm² - 1 module - To combine with front KM07, stand and embellishing board - SandGeneral features
Living Now - bases for the transmission of audio/video signals| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Engage (snap) |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| With imprint (EF004048) | No |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | No |
| Min. depth of built-in installation box (EF012278) | 30 mm |
| Surface protection (EF000139) | Untreated |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | No |
| RAL-number (similar) (EF003882) | 1015 |
| Utilization (EF000133) | Loudspeaker connection |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 33 mm |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK00 |
| Imprintable label (EF001519) | Without indication field |
| Device width (EF008808) | 22 mm |
| Assembly arrangement (EF000005) | Basic unit |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Beige |
