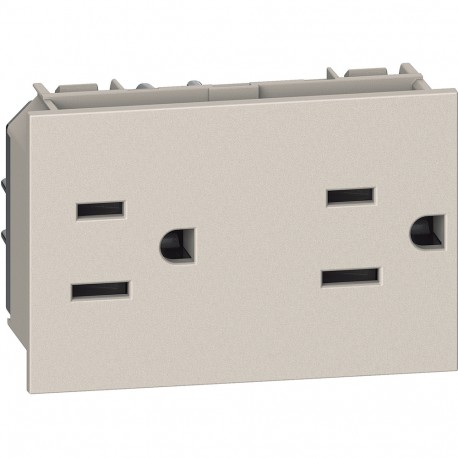

BTICINO KM4188 KM4188 BTCINO LN-BASE AME 2X2P+T 15A 3M SAND View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KM4188 BTCINO LN-BASE AME 2X2P+T 15A 3M SAND

KM4188

KM4188

BTICINO

5 Pcs.

LN-BASE AME 2X2P+T 15A 3M SAND Duplex base 2P+T Living Now - American standard - screw connection - sand - 3 modules Duplex Base 2P+T Living Now - American Standard - 15A 127/250Vac - sand - 3mod

Automation > Socket outlet
LIVING NOW

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A flush-mounted socket outlet (Bticino part KM4188) routes standard AC electrical power to connected loads within architectural wiring systems and distribution enclosures.

Wall-mounted power sockets serve as the primary physical connection point between fixed electrical infrastructure and portable machinery or appliances.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 3
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 34.5 mm

More info

▲

Product features

Bases 2 x 2P+T American standard - 15 A - 250 10 10 10 10 - Screw connection - With protective shutters - 3 modules - A combine with front KM52, stand and embellishing plate - Sand

General features

Living Now - international mainstream bases

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
