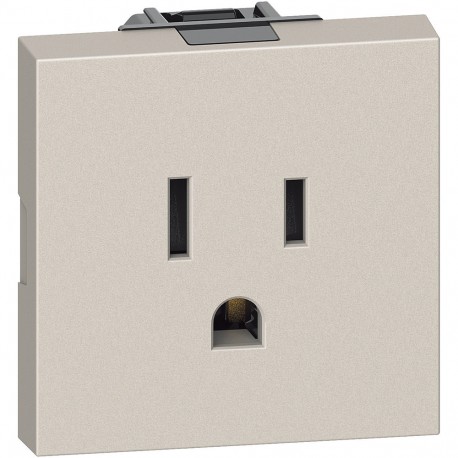

BTICINO KM4129 KM4129 BTCINO LN-BASE AME 2P+T 15A 2M SAND View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KM4129 BTCINO LN-BASE AME 2P+T 15A 2M SAND

KM4129

KM4129

BTICINO

10 Pcs.

LN-BASE AME 2P+T 15A 2M SAND Base 2P+T Living Now - American standard - screw connection - sand - 2 modules 2P+T Living Now Base - American Standard - 15A 127/250Vac - Sand - 2mod

Automation > Socket outlet
LIVING NOW

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino LN-BASE AME 2P+T 15A 2M SAND (KM4129) is a flush-mounted socket outlet designed to deliver consistent electrical power to connected devices within specific regional voltage parameters. It mounts securely inside standard two-module wall enclosures.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 127 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 35 mm

More info

▲

Product features

American standard 2P+T bases - 15 A - 250 Vac - Connection by screws - With protection shutters - 2 modules - To be combined with KM51 front, support and trim plate - Sand

General features

Living Now - international mainstream bases
