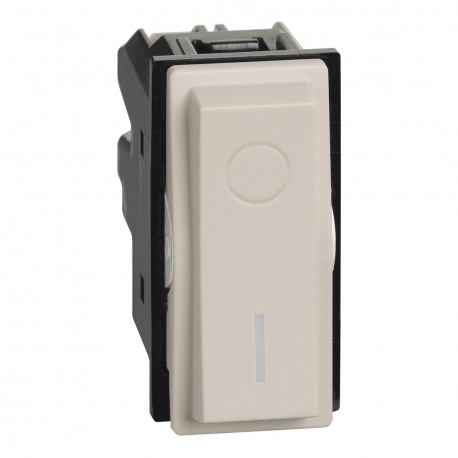

KM40 BTCINO LNWN 1M I/O SAND KEY
KM40
KM40
BTICINO
10 Pcs.
LNWN 1M I/O SAND KEY
Living Now bipolar switch - illuminable - 16AX - 250Vac - Sand - 1 module
Living Now w/Netatmo key for wireless stage command - Sand - 1mod
Automation > Control element/cover plate for domestic switching devices
LIVING NOW WITH NETATMO
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This is a KM40 BTCINO LNWN 1M I/O SAND KEY switch/push button produced by Bticino. Rocker operators are essential interface components used to toggle lighting and power circuits smoothly within standard electrical installation frames.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 86 mm
- RAL-number (similar) (EF003882): 1015
- Model (EF000010): One-part rocker
- Material (EF002169): Plastic
- Utilization (EF000133): Switch/push button
- Monitoring window/light outlet (EF003864): Yes
- Surface finishing (EF006569): Matt
- Type of fastening (EF002442): Engage (snap)
- Material quality (EF001257): Thermoplastic
- Halogen free (EF000025): Yes
- With exchangeable lens/symbol (EF006039): No
- With label area (EF005040): No
- Scannable symbol/barrier free (EF012306): No
- Anti-bacterial treatment (EF023790): No
- Impact strength (EF004293): IK04
- Imprint/indication (EF003823): Various symbols
More info
▲
Lighting mechanisms - Bipolar switch - 2P - 16AX - 250Vac - Automatic terminal - Becomes luminous or pilot with LED signaling lamps -To be combined with key, support and decorative plate - 1 module - Sand.
| Cabling System | 1-pole disconnect switch |
|---|---|
| Type of operation | Rocker/button |
| Type of mounting | Module for system interruption program, Recessed mounted (plaster) |
| Number of modules (in case of modular design) | 1 |
| Push Button Switch | Yes |
| Attachment Type | Lock in position |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | Beige |
| RAL number (similar) | 1015 |
| Switching element color | Beige |
| Label space/print surface | No |
| Lighting | Optional |
| Lighting function | Orientation |
| Lighting Type | Other |
| Suitable for protection grade (IP) | IP21 |
| Impact resistance | IK04 |
| Nominal Voltage | 250 V |
| Nominal current | 16 A |
|---|---|
| Monitoring contacts | No |
| Connection Method | Screw-on terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 22 mm |
| Device height | 45 mm |
| Device Depth | 41 mm |
| Installation Depth | 28 mm |
| Min. depth of the recessed box | 38 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature | -5-35 °C |
| Storage temperature | -5-35 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | No |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
