View larger
Images are for illustrative purposes only. Please refer to data sheet for details

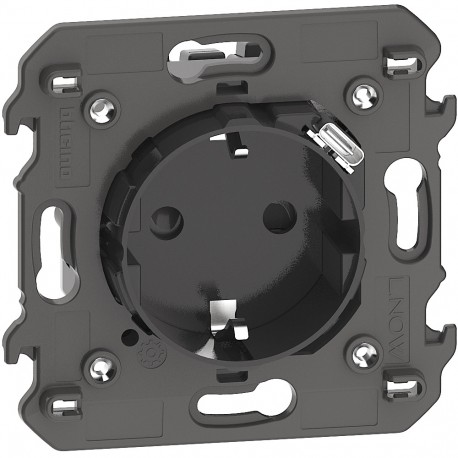

KG4141USB BTCINO LN-BASE 2P+T+USBC 1.5A 2M DARK
KG4141USB
KG4141USB
BTICINO
10 Pcs.
LN-BASE 2P+T+USBC 1.5A 2M DARK
Base 2P+T+USB Living Now - integrated USB Type-C charger - dark - 2 modules
2P+T+USB Base Living Now - integrated USB Type C charger - Dark - 2mod
Automation > Socket outlet
LIVING NOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Bases 2P+T+USB - 16 A - 250 Vac - Automatic terminals - With protection shutters - USB type C charger - 5 Vdc - 1.5 A - 2 modules - For installation in 2 modules combine with front ref. KG62 and trim plate - Integrated support - DarkGeneral features
Living Now - power stations with integrated USB charger| Feature Name | Feature Value |
|---|---|
| Over voltage protection (EF001332) | No |
| Nominal current (EF000001) | 16 A |
| Rotated central insert (EF001331) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Special power supply (EF001334) | EV006426 |
| Connection type (EF000124) | Screwed terminal |
| Fault current protection (EF001333) | No |
| Nominal voltage (EF000002) | 250 V |
| Number of modules (module system) (EF009573) | 2 |
| Compatible with Apple HomeKit (EF014925) | No |
| Eject-mechanism (EF001051) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of ports USB-C (EF017049) | 1 |
| Min. depth of built-in installation box (EF012278) | 41.5 mm |
| Imprint/indication (EF003823) | None |
| With hinged lid (EF000117) | No |
| Number of ports USB-A (EF000997) | 0 |
| Metallic colour (EF015260) | No |
| With Wi-Fi signal repeater (EF013509) | No |
| RAL-number (similar) (EF003882) | 7015 |
| Model (EF000010) | Socket outlet CEE 7/3 (type F) |
| Number of socket outlets switchable (EF008814) | 0 |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 41.5 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of active contacts (square) (EF017115) | 0 |
| Protective contact (EF017116) | Other |
| Device width (EF008808) | 76 mm |
| With on/off switch (EF000488) | No |
| Device height (EF008809) | 73 mm |
| Colour (EF000007) | Black |
| For heavy conditions according to VDE (EFDE0005) | No |
| Number of active contacts (flat) (EF011999) | 0 |
| Number of active contacts (round) (EF011998) | 2 |
| Material (EF002169) | Plastic |
| With orientation lighting (EF008862) | No |
| Label space/information surface (EF001035) | No |
| Surface finishing (EF006569) | Matt |
| Concurrently switching neutral conductor (EF005997) | No |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Other |
| With function lighting (EF008861) | No |
| Transparent (EF006243) | No |
| Insulated mounting (EF001588) | No |
| Surface protection (EF000139) | Untreated |
| Rated fault current (EF002358) | 16 mA |
| Frequency (EF000416) | 50 Hz |
| Number of phases (EF000351) | 1 |
| With signal lamp (EF000198) | No |
| Lockable (EF000113) | No |
| With built-in bluetooth speaker (EF016914) | No |
| With miniature fuse (EF006571) | No |
| IFTTT support available (EF011072) | No |
| With enhanced contact protection (EF000389) | Yes |
| With loop through function (EF006604) | No |
