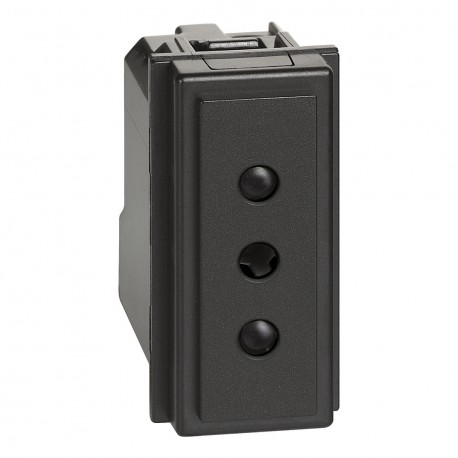

BTICINO KG4113 KG4113 BTCINO LN-BASE IT 2P+T 10A 1M DARK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KG4113 BTCINO LN-BASE IT 2P+T 10A 1M DARK

KG4113

KG4113

BTICINO

5 Pcs.

LN-BASE IT 2P+T 10A 1M DARK Base 2P+T Living Now - Italian standard - connection by screws - dark - 1 module 2P+T Living Now Base - Italian Standard - Dark - 1mod

Automation > Socket outlet
LIVING NOW

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino KG4113 BTCINO LN-BASE IT 2P+T 10A 1M DARK is a flush-mounted modular socket insert designed to provide safe electrical connectivity in wall installations. This component type integrates cleanly into multi-gang frames to deliver localized power access.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 10 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 1
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 38 mm

More info

▲

Product features

Italian standard 2P+T bases - 10 A - 250 Vac - Distance between alveoli of 19 mm - Connection by screws - With protective shutters - 1 module - To be combined with front KG02, support and trim plate - Dark

General features

Living Now - international mainstream bases
