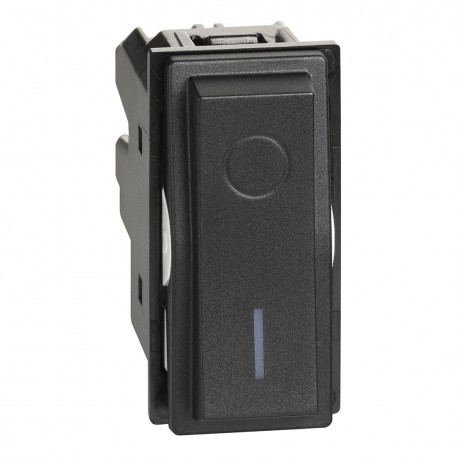

BTICINO KG40 KG40 BTCINO LNWN 1M I/O DARK KEY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KG40 BTCINO LNWN 1M I/O DARK KEY

KG40

KG40

BTICINO

10 Pcs.

LNWN 1M I/O DARK KEY Living Now bipolar switch - illuminable - 16AX - 250VAC - Dark - 1 module Living Now w/Netatmo key for wireless scenario command - Dark - 1mod

Automation > Control element/cover plate for domestic switching devices
LIVING NOW WITH NETATMO

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Bticino KG40 BTCINO LNWN 1M I/O DARK KEY acts as a single-module rocker plate bearing standardized input/output indications for electrical control mechanisms. Rockers of this type are widely deployed in commercial control panels and domestic wiring architectures to clearly designate power state transitions and device toggling. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 86 mm
  • RAL-number (similar) (EF003882): 7015
  • Model (EF000010): One-part rocker
  • Material (EF002169): Plastic
  • Utilization (EF000133): Switch/push button
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK04
  • Imprint/indication (EF003823): Various symbols

More info

▲
Lighting mechanisms - Bipolar switch - 2P - 16AX - 250Vac - Automatic terminal - Becomes luminous or pilot with LED signaling lamps -To be combined with key, support and decorative plate - 1 module - Dark.
Cabling System1-pole disconnect switch
Type of operationRocker/button
Type of mountingModule for system interruption program, Recessed mounted (plaster)
Number of modules (in case of modular design)1
Push Button SwitchYes
Attachment TypeLock in position
With mounting plateNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishMate
ColourBlack
RAL number (similar)7015
Switching element colorAnthracite
Label space/print surfaceNo
LightingOptional
Lighting functionOrientation
Lighting TypeOther
Suitable for protection grade (IP)IP21
Impact resistanceIK04
Nominal Voltage250 V
Nominal current16 A
Monitoring contactsNo
Connection MethodScrew-on terminal
Heating switchNo
Washing machine switchNo
Device width22 mm
Device height45 mm
Device Depth41 mm
Installation Depth28 mm
Min. depth of the recessed box38 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature-5-35 °C
Storage temperature-5-35 °C
Type of voltageAC
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsNo
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
