KG32 BTCINO LNwN-KEY 1M PER.4027C/CWI DK
KG32
KG32
BTICINO
10 Pcs.
Automation > Control element/cover plate for domestic switching devices
LIVING NOW WITH NETATMO
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

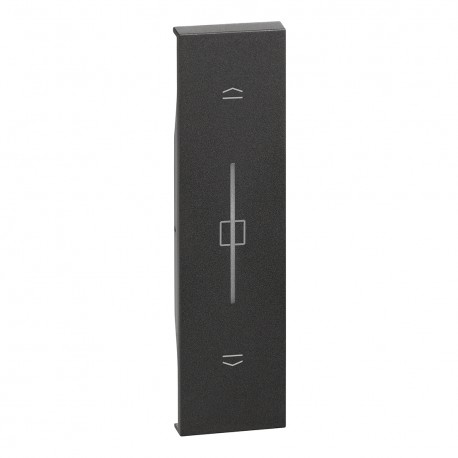

Engineered for motor control applications, the Bticino KG32 BTCINO LNwN-KEY 1M PER.4027C/CWI DK acts as a single-part button designed to manage Venetian blinds and automated shading systems. Push button actuators of this type route directional commands to underlying control modules for precise window covering adjustments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 86 mm
- RAL-number (similar) (EF003882): 7015
- Model (EF000010): One-part button
- Material (EF002169): Plastic
- Utilization (EF000133): Venetian blind
- Monitoring window/light outlet (EF003864): Yes
- Surface finishing (EF006569): Matt
- Type of fastening (EF002442): Engage (snap)
- Material quality (EF001257): Thermoplastic
- Halogen free (EF000025): Yes
- With exchangeable lens/symbol (EF006039): No
- With label area (EF005040): No
- Scannable symbol/barrier free (EF012306): No
- Anti-bacterial treatment (EF023790): No
- Impact strength (EF004293): IK04
- Imprint/indication (EF003823): Symbol "arrows"
More info
▲| Model | Single push button |
|---|---|
| Printing/Marking | "Arrows" symbol |
| Tangible/barrier-free symbol | No |
| Use | Venetian curtain |
| Suitable for connection of bus system pushbuttons | No |
| Attachment Type | Lock in position |
| Light Output/Control Window | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Antibacterial treatment | No |
|---|---|
| Colour | Black |
| RAL number (similar) | 7015 |
| With label area | No |
| With interchangeable lens/symbol | No |
| Impact resistance | IK04 |
| Width | 22 mm |
| Height | 86 mm |
| Depth | 7 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
