View larger
Images are for illustrative purposes only. Please refer to data sheet for details

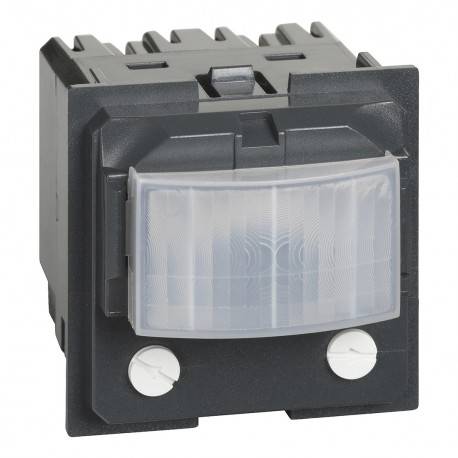

K4432 BTCINO LN-SENSOR IR 3H 2M
K4432
K4432
BTICINO
10 Pcs.
LN-SENSOR IR 3H 2M
Living Now IR circuit breaker - 3 threads - 2 modules
Living Now IR Automatic Switch - 3 Wires - 2mod
Automation > Movement sensor complete
LIVING NOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Ecodetectors - Switch with passive IR motion sensor - 3 wires - Checks the natural luminosity continuously and not only at the time of detection - Powers admitted according to the type of lamp: - LEDs and fluocompacts : 0 to 200 W, fluo tubes with ferromagnetic or electronic transformer: 0 to 200 W - Halogens 230 Vits, incandescent : 0 to 400 W - Variable threshold twilight circuit with possibility of exclusion - Adjustable timing from 30 seconds to 10 minutes - Power supply 230 Vitca - To be combined with the front ref. KG/KM/KW17, support and embellishing plate - 2 modulesGeneral features
Living Now - lighting detectors| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 51 mm |
| With remote control (EF000483) | No |
| Bridging switch (EF001099) | No |
| Staircase light controller (EF001098) | Yes |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Min. switch-on time (EF006589) | 30 s |
| Compatible with Apple HomeKit (EF014925) | No |
| Detection angle horizontal (EF006582) | -30 ° |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Response value sensitivity adjustable (EF003429) | Yes |
| Animal zone (EF006311) | No |
| Model (EF000010) | Movement sensor |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 120 m |
| Max. duty cycle (EF006590) | 600 min |
| Anti-bacterial treatment (EF023790) | No |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Max. starting current (EF001732) | 6 A |
| Connection cable length (EF003636) | 0 mm |
| Depth (EF000049) | 47 mm |
| Temperature (EF001731) | 5 °C |
| Substation input (EF003876) | No |
| Suitable for C-load (EF003832) | No |
| Colour (EF000007) | Other |
| Width (EF000008) | 44 mm |
| With connection cable (EF005036) | No |
| With signal unit (EF003890) | No |
| Suitable for wireless transmission (EF001198) | No |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | Yes |
| Voltage type (EF000187) | AC |
| Surface finishing (EF006569) | Matt |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Forced switch off (EF003920) | No |
| Surface protection (EF000139) | Other |
| Diameter reach on floor (EF003843) | 6 m |
| Frequency (EF000416) | 50 Hz |
| Remote operation (EF003848) | No |
| Constant light control (EF003863) | Yes |
| With DALI interface (EF009569) | No |
| Nominal voltage (EF005127) | 230 V |
| Max. reach sideways (EF001323) | 6 m |
| Max. reach frontally (EF001322) | 6 m |
| IFTTT support available (EF011072) | No |
| Creep-under protection (EF000147) | Yes |
| Teach-function for response value luminosity (EF003898) | No |
| HVAC-control (EF003858) | No |
