View larger
Images are for illustrative purposes only. Please refer to data sheet for details

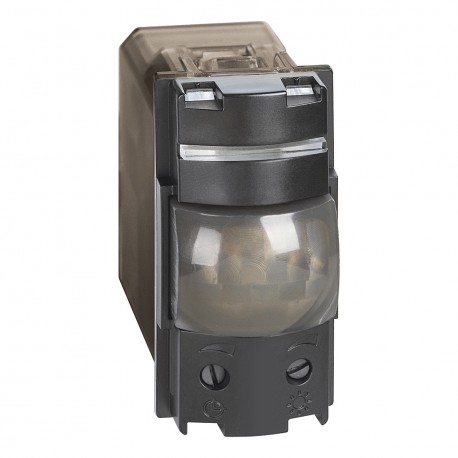

K4431 BTCINO LN-SENSOR IR 3H 1M
K4431
K4431
BTICINO
5 Pcs.
LN-SENSOR IR 3H 1M
IR Living Now circuit breaker - 3 threads - 1 module
Living Now IR Automatic Switch - 3 Wires - 1mod
Automation > Movement sensor complete
LIVING NOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Ecodetectors - Switch with passive IR motion sensor - 3 wires - Checks the natural luminosity continuously and not only at the time of detection - Powers admitted according to the type of lamp: - LEDs and fluocompacts : 0 to 50 W, fluo tubes with ferromagnetic or electronic transformer: 0 to 460 W, halogen and incandescent : 0 to 460 W, motors : 0 to 30 W - Variable threshold twilight circuit with possibility of exclusion - Adjustable timing from 30 seconds to 10 minutes - Power supply 230 Vitca - To be combined with the front ref. KG/KM/KW16, support and embellishing plate - 1 module moduleGeneral features
Living Now - lighting detectors| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 45 mm |
| With remote control (EF000483) | No |
| Bridging switch (EF001099) | No |
| Suitable for ceiling mounting (EF021180) | No |
| Staircase light controller (EF001098) | Yes |
| Connection type (EF000124) | Screwed terminal |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Min. switch-on time (EF006589) | 30 s |
| Compatible with Apple HomeKit (EF014925) | No |
| Detection angle horizontal (EF006582) | 2 ° |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Min. depth of built-in installation box (EF012278) | 41.5 mm |
| Networkable (EF003904) | Yes |
| Response value sensitivity adjustable (EF003429) | Yes |
| RAL-number (similar) (EF003882) | 9011 |
| Animal zone (EF006311) | No |
| Model (EF000010) | Movement sensor |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 2.5 m |
| Max. duty cycle (EF006590) | 600 min |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Max. starting current (EF001732) | 2 A |
| Connection cable length (EF003636) | 0 mm |
| Depth (EF000049) | 50 mm |
| Temperature (EF001731) | 5 °C |
| Substation input (EF003876) | No |
| Suitable for C-load (EF003832) | No |
| Colour (EF000007) | Black |
| Width (EF000008) | 44 mm |
| With connection cable (EF005036) | No |
| Scan angle (EF004101) | 120 ° |
| With signal unit (EF003890) | No |
| Suitable for wireless transmission (EF001198) | No |
| Degree of protection (IP) (EF005474) | IP21 |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | Yes |
| Voltage type (EF000187) | AC |
| Surface finishing (EF006569) | Matt |
| Halogen free (EF000025) | Yes |
| Max. presence range (EF012569) | 40 m² |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Forced switch off (EF003920) | No |
| Surface protection (EF000139) | Other |
| Diameter reach on floor (EF003843) | 6 m |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 33.5 mm |
| Remote operation (EF003848) | No |
| Constant light control (EF003863) | Yes |
| With DALI interface (EF009569) | No |
| Nominal voltage (EF005127) | 230 V |
| Max. reach sideways (EF001323) | 6 m |
| Number of switching zones (EF009568) | 1 |
| Max. reach frontally (EF001322) | 6 m |
| IFTTT support available (EF011072) | No |
| Min. starting current (EF011992) | 0.5 A |
| Suitable for wall mounting (EF000664) | No |
| Creep-under protection (EF000147) | Yes |
| Forced switch on (EF011991) | No |
| Teach-function for response value luminosity (EF003898) | No |
| HVAC-control (EF003858) | No |
