View larger
Images are for illustrative purposes only. Please refer to data sheet for details

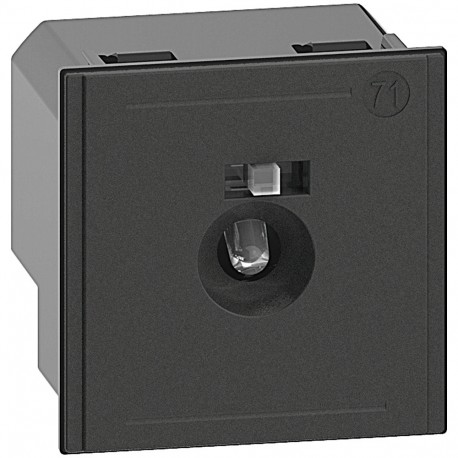

K4382 BTCINO LN-PILOT BEACONED 230V 2M
K4382
K4382
BTICINO
5 Pcs.
LN-PILOT BEACONED 230V 2M
Pilot beaconed Living Now - 2 modules
Living Now Beaconed Pilot - 2mod
Automation > Information light signal for domestic switching devices
LIVING NOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Luminous markers - Beacon pilot - 230 Vit - Allows to create a directional and decorative lighting - It is advisable to install it 30 cm from the ground - It can be controlled from a traditional mechanism or from an electronic mechanism without neutral, from a light regulator or from an automatic switch with neutral - White LED lamp, consumption 2.2 W - Luminous flux 70 lumens - Duration: 50,000 hours approx. - To be combined with front ref. KG/KM/KW71, support and embellishing plate - 2 modulesGeneral features
Living Now - acoustic and light signalling| Feature Name | Feature Value |
|---|---|
| Max. lamp power (EF000260) | 0.5 W |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Lamp type (EF002423) | LED non-replaceable |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Engage (snap) |
| Mounting method (EF000003) | Flush mounted |
| Nominal voltage (EF000002) | 230 V |
| Number of modules (module system) (EF009573) | 2 |
| Transparent (EF006243) | No |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Colour light source (EF001402) | White |
| Surface protection (EF000139) | Untreated |
| With light source (EF005905) | Yes |
| With fixed symbol/imprint (EF007949) | No |
| RAL-number (similar) (EF003882) | 7015 |
| With flashlight (EF006575) | No |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 32.5 mm |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Basic unit |
| Application as button (EF003912) | No |
| Device height (EF008809) | 45 mm |
| Lamp holder (EF000048) | None |
| Colour (EF000007) | Black |
| With exchangeable symbol (EF006748) | No |
