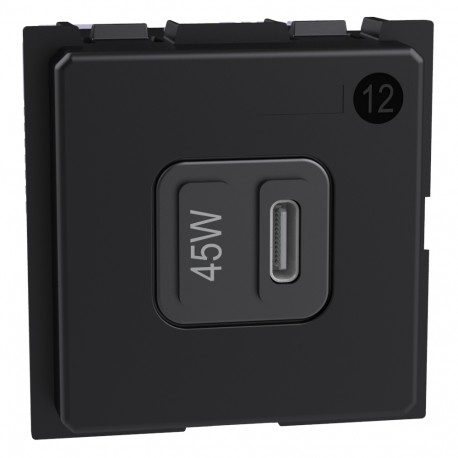

K4294C BTCINO LN-BASE USB TYPE C PD 45W 2M
K4294C
K4294C
BTICINO
5 Pcs.
Automation > USB power supply
LIVING NOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for flush installation, the K4294C BTCINO LN-BASE USB TYPE C PD 45W 2M delivers high-output power for modern electronics directly from standard building circuits. Panel builders and contractors select these devices to provide high-speed charging options in corporate offices and hospitality environments.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Mounting method: Flush mounted
- Suitable for degree of protection (IP): IP40
- Connection type: Screwed terminal
- Operating voltage: 100 V
- Device depth: 41 mm
- Impact strength: IK04
- Anti-bacterial treatment: No
- Number of ports USB-C: 1
- Min. depth of built-in installation box: 40 mm
- Output voltage: 5 V
- Power consumption: 0.059 W
- Device width: 45 mm
- Device height: 45 mm
- Colour: Black
- Number of ports USB-A: 0
- RAL-number: 9011
More info
▲| Model | Other |
|---|---|
| Number of USB-A ports | 0 |
| Number of USB-C ports | 1 |
| Operating voltage | 100-240 V |
| frequency | 50-60 Hz |
| Maximum output current | 3000 mA |
| Output voltage | 5-20 V |
| Power consumption | 0.059 W |
| Connection Method | Screw-on terminal |
| Type of mounting | Recessed mounted (plaster) |
| Colour | Black |
| RAL number | 9011 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 41 mm |
| Min. depth of the recessed box | 40 mm |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Antibacterial treatment | No |
|---|---|
| Wireless | No |
| Installation Depth | 33 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Power Delivery | Yes |
| USB Power Output | 45 |
| Nominal current | 1-1 A |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
