View larger
Images are for illustrative purposes only. Please refer to data sheet for details

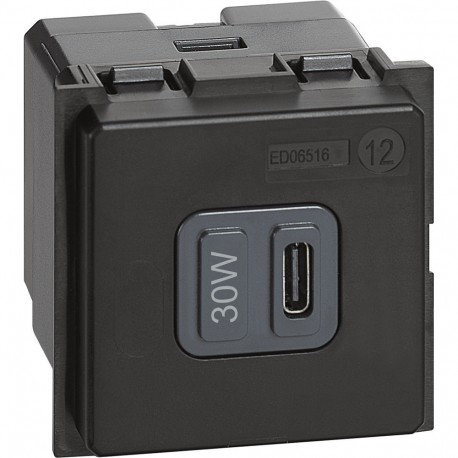

K4288C2 BTCINO LN-BASE USB TYPE-C 3A 30W 2M
K4288C2
K4288C2
BTICINO
1 Pcs.
LN-BASE USB TYPE-C 3A 30W 2M
Living Now USB Charger - 1 USB - Type-C - Power Delivery - 3,000 mA - 30 W - 2 modules - white
Living Now USB Charger - 1 USB - Type C - 30W- White - 2mod
Automation > USB power supply
LIVING NOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
USB Type-C Power Delivery Charger - Allows fast recharging of all types of devices from computers (PC - Mac), tablets (Apple - IOS Android) and smartphones (Apple / IOS Android) equipped with Power Delivery technology - Also allows the recharging of devices without Power Delivery technology (tablets and smartphones) - Power Delivery 3.0 optimizes the voltage supplied by reducing the charge cycle and preserving battery life - Energy efficiency level: VI TUV - Standby consumption: 0.06 W - Automatic output voltages: 5 - 9 - 12 -15 - 20 V - Protected against surges - Installation in recessed boxes of minimum depth 40 mm - Screw terminals of 2x2.5 mm² - Supplied without cable - To be combined with fronts ref. KG/KM/KW12C, support and embellishment plate of the Living Now series of mechanisms - 2 modulesGeneral features
Living Now - USB charger bases| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 100 V |
| Device depth (EF008810) | 41 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of ports USB-C (EF017049) | 1 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Output voltage (EF003933) | 5 V |
| Power consumption (EF000346) | 0.059 W |
| Device width (EF008808) | 45 mm |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | Black |
| Number of ports USB-A (EF000997) | 0 |
| RAL-number (EF000116) | 7015 |
| Max. output current (EF001315) | 3000 mA |
| Frequency (EF000416) | 50 Hz |
