View larger
Images are for illustrative purposes only. Please refer to data sheet for details

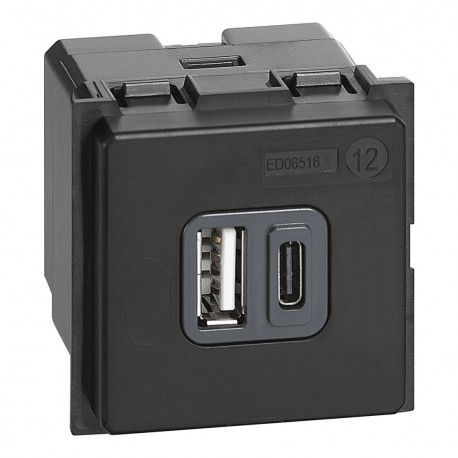

K4287C2 BTCINO LN-BASE USBA+C 3.0A/5V 2M
K4287C2
K4287C2
BTICINO
1 Pcs.
LN-BASE USBA+C 3.0A/5V 2M
Base USB dual charger Living Now - Type A+C - 2 modules
Living Now USB Double Charger Base - Type A+C - 2mod
Automation > USB power supply
LIVING NOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
USB universal chargers - Type A+C - 3 A - 5 V - 230 CA - Conforms to IEC 62684-2011-01 - Allow fast charging of mobile phones, tablets, smartphones, MP3, MP4 - Free up space for current bases - Resting consumption < 0.1 W - Class II TBTS - In accordance with the EEC directive on the harmonisation of the standard for recharging portable terminals and the reduction of mobile chargers - Supplied without cable - To combine with front ref. KG/KM/KW12C, support and beautifying plate - 2 modulesGeneral features
Living Now - USB charger bases| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 100 V |
| Device depth (EF008810) | 41 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of ports USB-C (EF017049) | 1 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Output voltage (EF003933) | 5 V |
| Power consumption (EF000346) | 0.066 W |
| Device width (EF008808) | 45 mm |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | Black |
| Number of ports USB-A (EF000997) | 1 |
| RAL-number (EF000116) | 7015 |
| Max. output current (EF001315) | 3000 mA |
| Frequency (EF000416) | 50 Hz |
