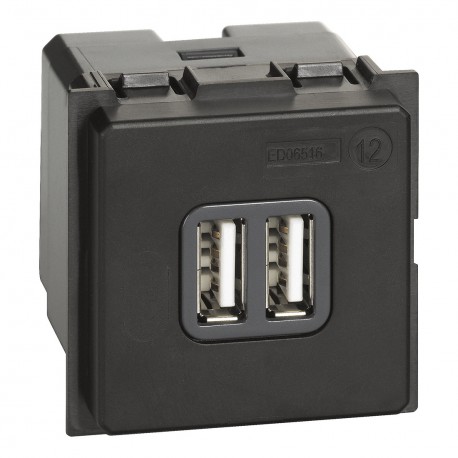

BTICINO K4285C2 K4285C2 BTCINO LN-BASE USBA+A 3.0A/5V 2M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K4285C2 BTCINO LN-BASE USBA+A 3.0A/5V 2M

K4285C2

K4285C2

BTICINO

1 Pcs.

LN-BASE USBA+A 3.0A/5V 2M Living Now Dual USB Charger Base - Type A+A - 2 modules Living Now USB Double Charger Base - Type A+A - 2mod

Automation > USB power supply
LIVING NOW

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A K4285C2 BTCINO LN-BASE USBA+A 3.0A/5V 2M by Bticino functions as a dedicated USB charging outlet module integrated into electrical wall installations. In commercial and residential buildings, these units supply direct low-voltage power to portable electronics like smartphones and tablets without requiring external wall adapters. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.068 W
  • Device width (EF008808): 45 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): Black
  • Number of ports USB-A (EF000997): 2
  • RAL-number (EF000116): 7015

More info

▲

Product features

Universal USB chargers - Type A+A - 3 A - 5 V - 230 Vac - Compliant with IEC 62684-2011-01 - Allow fast charging of mobile phones, tablets, smartphones, MP3, MP4 - Free up space for power bases - Standby consumption < 0.1 W - Class II TBTS - In accordance with the EEC Directive on the harmonization of the standard for recharging portable terminals and the reduction of mobile chargers - Supplied without cable - To be combined with fronts ref. KG/KM/KW12C, bracket and beautifying plate - 2 modules

General features

Living Now - USB charger bases
