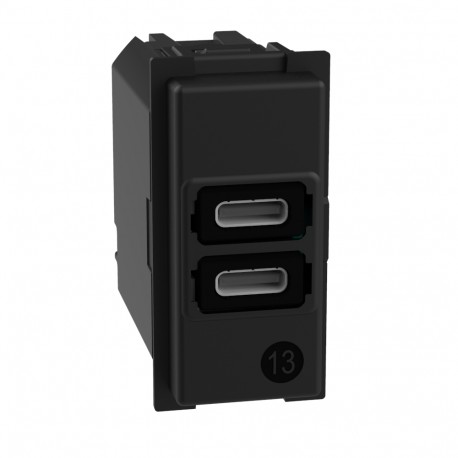

BTICINO K4191CC K4191CC BTCINO LN-BASE USBC+C 3A/5V 1M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K4191CC BTCINO LN-BASE USBC+C 3A/5V 1M

K4191CC

K4191CC

BTICINO

1 Pcs.

LN-BASE USBC+C 3A/5V 1M Dual USB Charger Base Living Now - Type C+C - 1 module Living Now USB Double Charger Base - Type C+C - 1mod

Automation > USB power supply
LIVING NOW

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for compact flush installations, the K4191CC Bticino Ln-Base Usbc+C 3A/5V 1M delivers direct USB-C power conversion within standard wall openings. Such hardware components are regularly specified in commercial and residential electrical systems to facilitate streamlined equipment charging. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 2
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.083 W
  • Device width (EF008808): 22 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): Black
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 7015

More info

▲

Product features

USB chargers C+C - 3A/5V - 15W - Allows fast charging of mobiles, tablets, smartphones, MP3, MP4 - Standby consumption0.1 W - Class II TBTS - Supplied without cable - Combine with front ref. KG/KM/KW13C, bracket and plate -1 module

General features

Living Now - USB charger bases
