View larger
Images are for illustrative purposes only. Please refer to data sheet for details

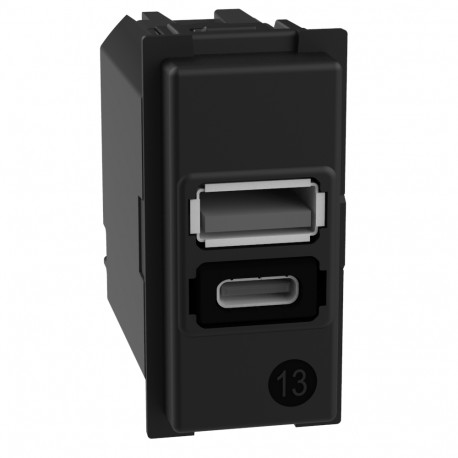

K4191AC BTCINO LN-BASE USBA+C 3A/5V 1M
K4191AC
K4191AC
BTICINO
1 Pcs.
LN-BASE USBA+C 3A/5V 1M
Living Now USB Dual Charger Base - Type A+C - 1 module
Automation > USB power supply
LIVING NOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
USB chargers A + C - 3A / 5V - 15W - Allows fast charging of mobiles, tablets, smartphones, MP3, MP4 - Standby consumption0.1 W - Class II TBTS - Supplied without cable - Combine with front ref. KG/KM/KW13C, bracket and plate -1 moduleGeneral features
Living Now - USB charger bases| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 100 V |
| Device depth (EF008810) | 41 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of ports USB-C (EF017049) | 1 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Output voltage (EF003933) | 5 V |
| Power consumption (EF000346) | 0.091 W |
| Device width (EF008808) | 22 mm |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | Black |
| Number of ports USB-A (EF000997) | 1 |
| RAL-number (EF000116) | 7015 |
| Max. output current (EF001315) | 3000 mA |
| Frequency (EF000416) | 50 Hz |
