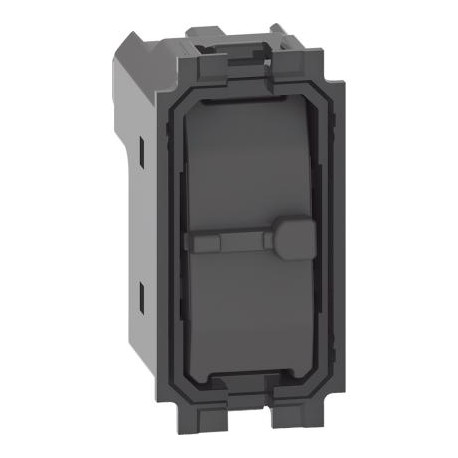

BTICINO K4037N K4037N BTCINO LN-PULS DOUBLE LOCK 10A 1M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K4037N BTCINO LN-PULS DOUBLE LOCK 10A 1M

K4037N

K4037N

BTICINO

1 Pcs.

LN-PULS DOUBLE LOCK 10A 1M Double push button for Living Now shutters - 10A - 250V~ - interlocked push buttons - 1 module Double push button for Living Now blinds - 250V~ - 1mod

Automation > Venetian blind switch/-push button
LIVING NOW

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino K4037N BTCINO LN-PULS DOUBLE LOCK 10A 1M serves as a compact double push-button switch utilized in electrical wiring systems for momentary contact control tasks such as lighting circuits or motorized mechanism signaling. Units of this type integrate into modular frames to provide reliable directional or pulse control in commercial and residential walls.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mechanical controllable (EF005993): Yes
  • Label space/information surface (EF001035): No
  • Material (EF002169): Plastic
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Halogen free (EF000025): Yes
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Connection type (EF000124): Screwed terminal
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 1
  • Transparent (EF006243): No
  • Compatible with Apple HomeKit (EF014925): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of poles (EF001391): 1

More info

▲

Overview

Double push button 10A 250 Vac. 1 P (NA) + 1 P (NA) interlocked for roller blinds, not Backlit - 1 module.

description
Shutter mechanisms - Double push button with mechanical lock - 10 A-250 Vac - One press to activate the maneuver and when releasing it stops -To be combined with keys of 1 module ref. KG/KM/KW05 or 2 modules ref. KG/KM/KW05M2, support and decorative plate - 1 module.

specifications

For Venetian blindsYes
For blindsYes
For awningsNo
Type of mountingModule for system interruption program, Recessed mounted (plaster)
Model1-pole push button
Number of poles1
Type of operationSeesaw
With electric lockNo
With mechanical lockNo
Mechanically DrivenYes
Electronically operatedNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Attachment TypeLock in position
Connection MethodScrew-on terminal
ColourBlack
RAL number (similar)7015
TransparentNo
Label Space/Print AreaNo
Suitable for protection grade (IP)IP20
Nominal current10 A
Nominal Voltage250 V
Number of buttons1
Number of modules (in case of modular design)1
Device width22 mm
Device height45 mm
Device Depth35 mm
Installation Depth33 mm
Min. depth of the recessed box43 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Impact resistanceIK04
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
frequency50-60 Hz
Lighting TypeNot included
Display of markings on the connection terminalsNo
Antibacterial treatmentNo
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Contains battery and/or accumulatorNo
