View larger
Images are for illustrative purposes only. Please refer to data sheet for details

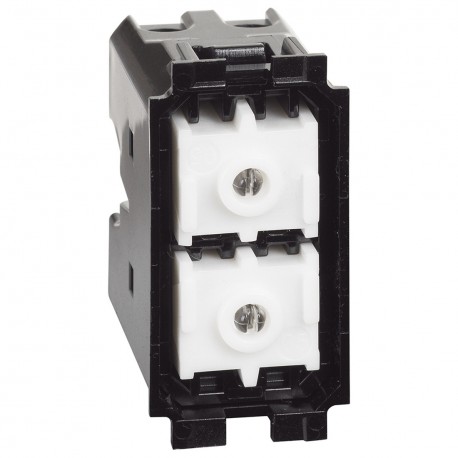

K4036 BTCINO LN-PULS DOUBLE 10A 1M
K4036
K4036
BTICINO
5 Pcs.
LN-PULS DOUBLE 10A 1M
Double button Living Now NA/NA - 10 A-250 V~- auto terminal - 1 module
Living Now NA/NA double push button for blinds - 1 module
Automation > Venetian blind switch/-push button
LIVING NOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Lighting mechanisms - Double pushbutton - 1P (NA) + 1P (NA) - 10 A 250 1 1 10 10 000 - Automatic borne - Not illuminatable - To combine with keys ref. KG/KM/KW05L, support and embellishing plate - 1 moduleGeneral features
Living Now - other lighting mechanisms| Feature Name | Feature Value |
|---|---|
| Mechanical controllable (EF005993) | Yes |
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Other |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Connection type (EF000124) | Screwed terminal |
| Nominal voltage (EF000002) | 250 V |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of poles (EF001391) | 2 |
| Min. depth of built-in installation box (EF012278) | 43 mm |
| Surface protection (EF000139) | Untreated |
| Built-in depth (EF000218) | 33 mm |
| Number of buttons (EF003144) | 0 |
| RAL-number (similar) (EF003882) | 7015 |
| Model (EF000010) | 2-pole push button |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 35 mm |
| Electronic controllable (EF006570) | No |
| IFTTT support available (EF011072) | No |
| Assembly arrangement (EF000005) | Insert for modular wiring accessories |
| Device width (EF008808) | 22 mm |
| Device height (EF008809) | 45 mm |
| Rated current (EF000227) | 10 A |
| Colour (EF000007) | Black |
| Method of operation (EF000006) | Rocker |
