View larger
Images are for illustrative purposes only. Please refer to data sheet for details

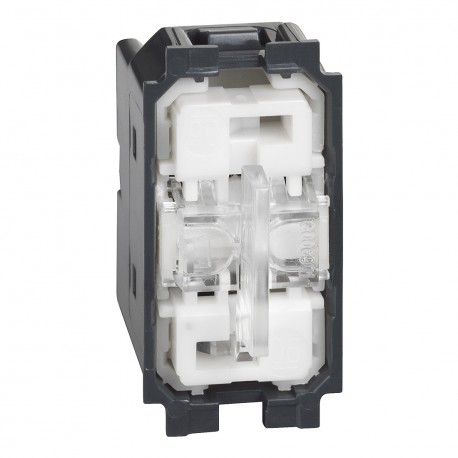

K4027 BTCINO LN-CONM DOUBLE 10AX 1M
K4027
K4027
BTICINO
10 Pcs.
LN-CONM DOUBLE 10AX 1M
Double switch for blinds Living Now - 1 module
Double switch for Living Now blinds - 1mod
Automation > Venetian blind switch/-push button
LIVING NOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Shutter mechanisms - Double switch - 10 AX-250 Vac - One press to activate the maneuver, another press in the center to stop it - To be combined with keys of 1 module ref. KG/KM/KW06 or 2 modules ref. KG/KM/KW06M2, support and beautifying plate - 1 moduleGeneral features
Living Now - blind mechanisms| Feature Name | Feature Value |
|---|---|
| Mechanical controllable (EF005993) | Yes |
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Engage (snap) |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Module frame/grid |
| Connection type (EF000124) | Screwed terminal |
| Nominal voltage (EF000002) | 250 V |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of poles (EF001391) | 1 |
| Min. depth of built-in installation box (EF012278) | 39 mm |
| Surface protection (EF000139) | Untreated |
| Built-in depth (EF000218) | 29 mm |
| Number of buttons (EF003144) | 1 |
| RAL-number (similar) (EF003882) | 7015 |
| Model (EF000010) | 1-pole switch |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 39 mm |
| Electronic controllable (EF006570) | No |
| IFTTT support available (EF011072) | No |
| Assembly arrangement (EF000005) | Basic unit |
| Device width (EF008808) | 22 mm |
| Device height (EF008809) | 45 mm |
| Rated current (EF000227) | 10 A |
| Colour (EF000007) | Black |
| Method of operation (EF000006) | Other |
