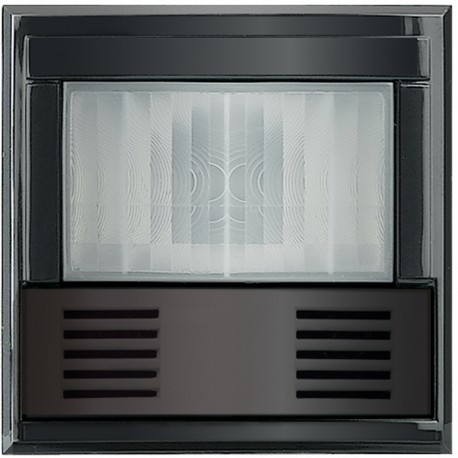

BTICINO HS4433 HS4433 BTCINO AX-IR SENSOR+US 2.5 TO 2M ANTR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS4433 BTCINO AX-IR SENSOR+US 2.5 TO 2M ANTR

HS4433

HS4433

BTICINO

1 Pcs.

AX-IR SENSOR+US 2.5 TO 2M ANTR AX-IR+US 2.5A 2M ANTR SENSOR Detector 3-wire with neutral Axolute - 2 modules - Anthracite 3-wire detector with neutral Axolute - 2mod - Anthracite

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino ax-ir sensor+us 2.5 to 2m antr (part number HS4433) functions as a dedicated presence detector for interior spaces, helping to automate lighting control systems. Passive infrared sensors detect thermal movement to activate connected loads, supporting energy-saving initiatives in modern building management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bridging switch (EF001099): No
  • Staircase light controller (EF001098): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Min. switch-on time (EF006589): 5 s
  • Compatible with Apple HomeKit (EF014925): No
  • Detection angle horizontal (EF006582): 180 °
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Networkable (EF003904): No
  • Animal zone (EF006311): No
  • Model (EF000010): Presence detector
  • With alarm function (EF005624): No
  • Optimum mounting height (EF008011): 1.2 m
  • Anti-bacterial treatment (EF023790): No
  • With acoustic sensor (EF017675): No

More info

▲

Product features

Presence Detector with neutral - Dual tech Infrared and Ultrasound, which allows a detection of presence accurate - Check the natural luminosity continuously and not only at the time of detection - Powers that are supported according to the type of lamp: - Led : 0 to 250 W - Fluocompactas : 0 to 250 W - LEDs, CFLs, Halogens, tube fluo transformer with ferromagnetic or electronic: 0 to 1000 VA - Halogen 230 V, incandescent : 0 to 2000 W - Possibility of installing up to 10 detectors in parallel - Possibility of manual control with additional thanks to the push-button built-in - Timing adjustable from 5 s to 30 min - Brightness adjustable 5 lux to 1275 lux - Consumption in standby: 0.4 W - Power supply 230 Vac - 3-wire - 2 modules - Anthracite

General characteristics

Axolute - detectors
