View larger
Images are for illustrative purposes only. Please refer to data sheet for details

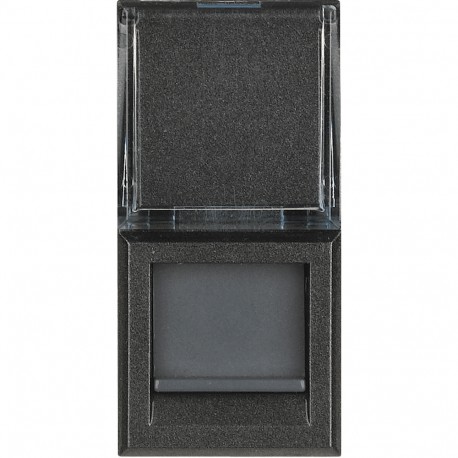

HS4279C6 BTCINO AX-BASE RJ45 CAT6 UTP 1M ANTR
HS4279C6
HS4279C6
BTICINO
10 Pcs.
AX-BASE RJ45 CAT6 UTP 1M ANTR
Base RJ-45 Axolute - Cat. 6 - UTP - 1 module - Anthracite
RJ45 Axolute Base - Cat.6 - UTP - 1mod - Anthracite
Automation > Data communication connection box copper (twisted pair)
RJ45 CONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Databases RJ-45 - Cat. 6 - UTP - 1 module - AnthraciteGeneral characteristics
Axolute - Basis for data - Install in bracket and plate - Bases fast connection without need of tools - Contacts marked with dual colour code| Feature Name | Feature Value |
|---|---|
| Duct installation (EF002440) | No |
| With dust cover (EF003893) | Yes |
| Colour coding (EF007758) | Yes |
| Degree of protection (IP) (EF005474) | IP21 |
| With label space (EF003456) | Yes |
| Shielded buses (EF002444) | No |
| Separate earthing connection (EF002500) | No |
| Connection type (EF000124) | Insulation displacement connector |
| Type of fastening (EF002442) | Engage (snap) |
| Floor box/subfloor mounted (EF003455) | No |
| Number of modules (module system) (EF009573) | 1 |
| RAL-number (EF000116) | 9004 |
| Type of connector (EF002935) | RJ45 8(8) |
| Surface mounting (EF003681) | No |
| Separate strain relief (EF002450) | No |
| Mounting method shielding connection (EF002497) | None |
| Device depth (EF008810) | 37.2 mm |
| With buses/couplings (EF005043) | Yes |
| Category (EF001619) | 6 |
| Device width (EF008808) | 22.3 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Anthracite |
| Suitable for number of connectors (EF001579) | 1 |
| Flush-mounted installation (EF007517) | Yes |
