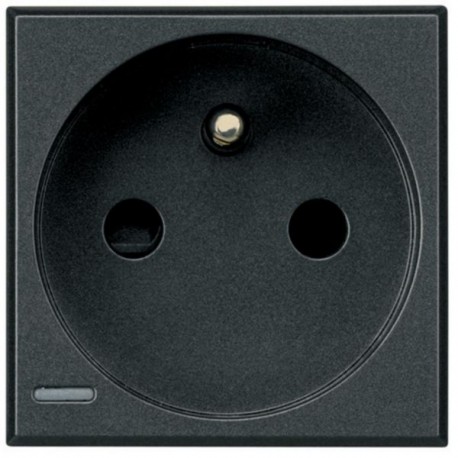

BTICINO HS4142 HS4142 BTCINO AX-BASE-FR 2P+T 16A 2M ANTR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS4142 BTCINO AX-BASE-FR 2P+T 16A 2M ANTR

HS4142

HS4142

BTICINO

10 Pcs.

AX-BASE-FR 2P+T 16A 2M ANTR 2P+T Axolute - standard French - connection by screws - Anthracite - 2 modules Base 2P+T Axolute - French Standard - Anthracite - 2mod

Automation > Socket outlet
AXOLUTE

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino part number HS4142 is a flush-mounted socket outlet built for professional electrical wiring installations in residential and commercial buildings. Standard wall receptacles bridge branch circuit wiring with corded equipment to deliver stable operating power. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • With hinged lid (EF000117): No

More info

▲

Product features

Bases 2P+T French standard 16 A - 250 V~ - Connection by screws - With shutter protection - Is converted into luminous pilot lamps ref. H4743B/230 - 2 modules - Anthracite

General characteristics

Axolute - bases of power
