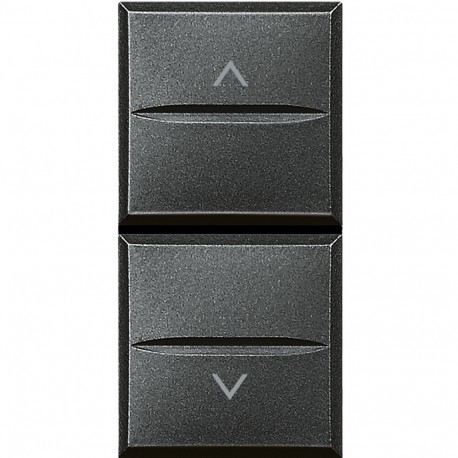

HS4037 BTCINO AX-PULS DOUBLE LOCK 10A 1M ANTR
HS4037
HS4037
BTICINO
10 Pcs.
AX-PULS DOUBLE LOCK 10A 1M ANTR
Push-button double-Axolute interblocado for shutters - 1 module - Anthracite
Double Axolute interlocked push button for blinds - 1mod - Anthracite
Automation > Venetian blind switch/-push button
AXOLUTE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Mechanisms of blinds - Push button double interblocado - 16 A 250 V~ - 1P (NO) + 1P (NO) - Anthracite - 1 moduleGeneral characteristics
Axolute - mechanisms of blinds and ventilation| Feature Name | Feature Value |
|---|---|
| Mechanical controllable (EF005993) | Yes |
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Glossy |
| Type of fastening (EF002442) | Other |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Module frame/grid |
| Connection type (EF000124) | Screwed terminal |
| Nominal voltage (EF000002) | 250 V |
| Transparent (EF006243) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of poles (EF001391) | 1 |
| Surface protection (EF000139) | Lacquered |
| Built-in depth (EF000218) | 42 mm |
| Number of buttons (EF003144) | 2 |
| RAL-number (similar) (EF003882) | 7015 |
| Model (EF000010) | 1-pole push button |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 42 mm |
| Electronic controllable (EF006570) | No |
| IFTTT support available (EF011072) | No |
| Assembly arrangement (EF000005) | Basic unit |
| Device width (EF008808) | 22.3 mm |
| Device height (EF008809) | 45 mm |
| Rated current (EF000227) | 10 A |
| Colour (EF000007) | Anthracite |
| Method of operation (EF000006) | Rocker |
