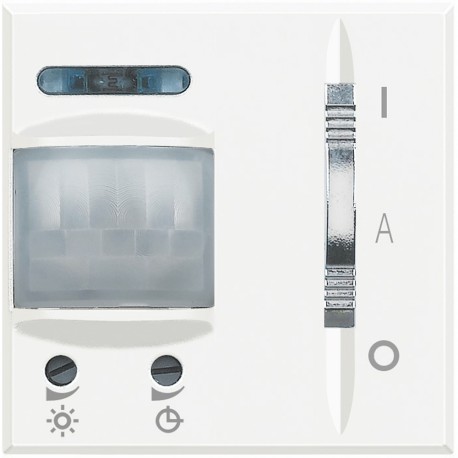

HD4432 BTCINO AX-IR SENSOR 6A 2M WHITE
HD4432
HD4432
BTICINO
1 Pcs.
AX-IR SENSOR 6A 2M WHITE
AX-SENSOR IR 6A 2M WHITE
Detector 3-wire with neutral exclusion Axolute - 2 modules - White
3-wire detector with neutral exclusion Axolute - 2mod - White
Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Detector 3-wire, with neutral, to the exclusion of - Power type of lamps: - Halogen 230 V, incandescent : 0 to 1200 W - Halogen with transformer ferromagnetic: 0 to 1200 VA - Tubes fluo : 0 to 450 VA - Possibility of forcing the detector in mode ON, Automatic or OFF by the cursor 3 positions - additional option of controlling manually by push button - Timer 30 s to 10 min. - Brightness threshold from 5 lux to 2000 lux - detection Angle 105° - detection Distance 6 m - Power supply 230 Vac - 3-wire - 2 modules - WhiteGeneral characteristics
Axolute - detectors| Feature Name | Feature Value |
|---|---|
| Bridging switch (EF001099) | No |
| Staircase light controller (EF001098) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Min. switch-on time (EF006589) | 30 s |
| Compatible with Apple HomeKit (EF014925) | No |
| Detection angle horizontal (EF006582) | 105 ° |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Networkable (EF003904) | No |
| Animal zone (EF006311) | No |
| Model (EF000010) | Movement sensor |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 1.2 m |
| Anti-bacterial treatment (EF023790) | No |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Connection cable length (EF003636) | 0 mm |
| Temperature (EF001731) | 5 °C |
| Substation input (EF003876) | No |
| Colour (EF000007) | White |
| With connection cable (EF005036) | No |
| With signal unit (EF003890) | No |
| Suitable for wireless transmission (EF001198) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | Yes |
| Voltage type (EF000187) | AC |
| Surface finishing (EF006569) | Glossy |
| Halogen free (EF000025) | No |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Max. switching power (EF001503) | 1380 W |
| Forced switch off (EF003920) | Yes |
| Surface protection (EF000139) | Other |
| Diameter reach on floor (EF003843) | 3 m |
| Frequency (EF000416) | 50 Hz |
| Remote operation (EF003848) | Yes |
| Constant light control (EF003863) | No |
| Nominal voltage (EF005127) | 230 V |
| Max. reach sideways (EF001323) | 6 m |
| Max. reach frontally (EF001322) | 6 m |
| IFTTT support available (EF011072) | No |
| Creep-under protection (EF000147) | No |
| Teach-function for response value luminosity (EF003898) | No |
| HVAC-control (EF003858) | No |
