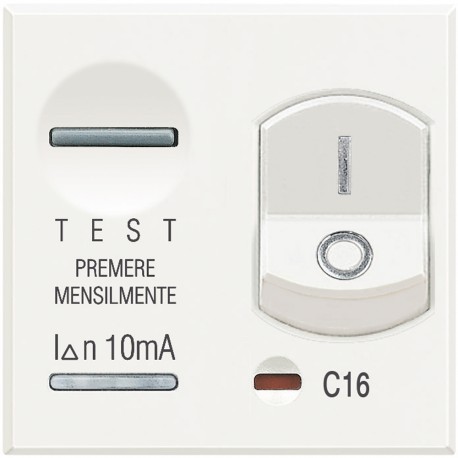

BTICINO HD4305A16 HD4305A16 BTCINO AX-M+DIF 1P+N 16A 10MA 2M WHITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HD4305A16 BTCINO AX-M+DIF 1P+N 16A 10MA 2M WHITE

HD4305A16

HD4305A16

BTICINO

10 Pcs.

AX-M+DIF 1P+N 16A 10MA 2M WHITE AX-M+DIF 1P+N 16A 10MA 2M BLAN Circuit breaker circuit breaker + differential Axolute - 16 A - 2 modules - White Automatic switch magnet + diff Axolute - 16A - 2mod - White

Automation > Earth leakage circuit breaker
AXOLUTE

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for flush mounting, this residual current circuit breaker with overcurrent protection protects individual branch circuits from overloads and ground faults. It is commonly installed in modular wiring devices for commercial and residential spaces.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50/60 Hz
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Ambient temperature during operating (EF007515): -5 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Number of protected poles (EF005548): 1
  • Built-in depth (EF000218): 44.5 mm
  • Number of poles (total) (EF008618): 1
  • Width in number of modular spacings (EF002950): 45.1
  • Rated current (EF000227): 16 A
  • Current limiting class (EF002568): 1
  • Release characteristic (EF000889): C
  • Rated voltage (EF000228): 230 V

More info

▲

Product features

Circuit breakers residual current protection and differential - Features a shaded pole - Indicator of contacts open and closed - Push-to-test - To 16 - Power of court: 3,000 - 2 modules - White

General characteristics

Axolute - lighting, buoys, signaling and security

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
