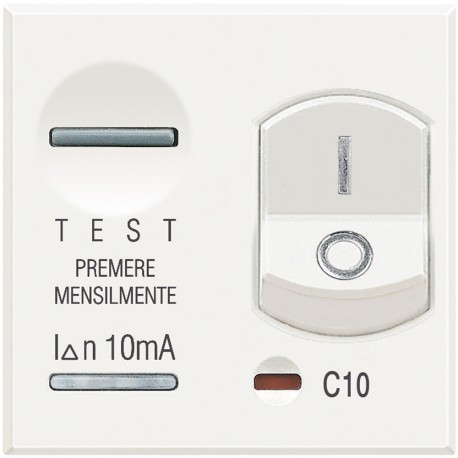

HD4305A10 BTCINO AX-M+DIFF 1P+N 10A 10MA 2M WHITE
HD4305A10
HD4305A10
BTICINO
10 Pcs.
AX-M+DIFF 1P+N 10A 10MA 2M WHITE
Circuit breaker circuit breaker + differential Axolute - 10 A - 2 modules - White
Automatic switch magnet + diff Axolute - 10A - 2mod - White
Automation > Earth leakage circuit breaker
AXOLUTE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Circuit breakers residual current protection and differential - Features a shaded pole - Indicator of contacts open and closed - Push-to-test - 10 - Power of court: 3,000 - 2 modules - WhiteGeneral characteristics
Axolute - lighting, buoys, signaling and security| Feature Name | Feature Value |
|---|---|
| Frequency (EF005455) | 50/60 Hz |
| Connectable conductor cross section solid-core (EF007337) | 2.5 mm² |
| Ambient temperature during operating (EF007515) | -5 °C |
| Degree of protection (IP) (EF005474) | IP20 |
| Leakage current type (EF002560) | Other |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Rated short-circuit breaking capacity according to IEC 60947-2 (EF006065) | 3 kA |
| Rated short-circuit breaking capacity according to EN 61009 (EF012628) | 3 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981) | 3 kA |
| Rated fault current (EF002358) | 0.01 A |
| Number of protected poles (EF005548) | 1 |
| Built-in depth (EF000218) | 44.5 mm |
| Number of poles (total) (EF008618) | 1 |
| Width in number of modular spacings (EF002950) | 45.1 |
| Rated current (EF000227) | 10 A |
| Current limiting class (EF002568) | 1 |
| Release characteristic (EF000889) | C |
| Rated voltage (EF000228) | 230 V |
