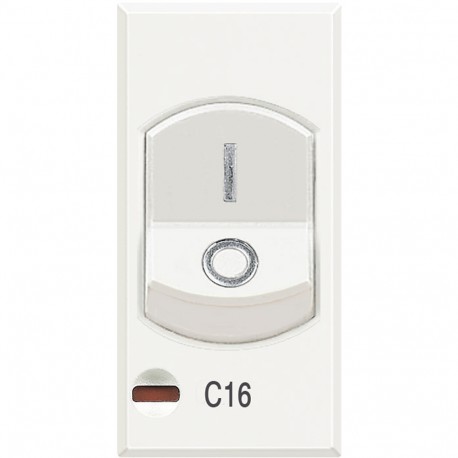

BTICINO HD4301A16 HD4301A16 BTCINO AX-MAG 1P+N 16A 3KA 1M WHITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HD4301A16 BTCINO AX-MAG 1P+N 16A 3KA 1M WHITE

HD4301A16

HD4301A16

BTICINO

1 Pcs.

AX-MAG 1P+N 16A 3KA 1M WHITE Circuit breaker circuit breaker Axolute - 16 A - 1 module - White Axolute automatic circuit breaker - 16A - 1mod - White

Automation > Miniature circuit breaker (MCB)
AXOLUTE

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Miniature circuit breaker HD4301A16 engineered by Bticino provides reliable overcurrent and short-circuit protection for building management and electrical installation systems. Compact modular breakers like this prevent damage to wiring and connected appliances by quickly clearing faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Ambient temperature during operating (EF007515): -5 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Number of protected poles (EF005548): 1
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44.5 mm
  • Number of poles (total) (EF008618): 1
  • Width in number of modular spacings (EF002950): 22.3
  • Rated current (EF000227): 16 A
  • Current limiting class (EF002568): 1
  • Release characteristic (EF000889): C
  • Rated voltage (EF000228): 230 V

More info

▲

Product features

Circuit breakers residual current protection - Features a shaded pole - Indicator of contacts open and closed - To 16 - Power of court: 3,000 - 1 module - White

General characteristics

Axolute - lighting, buoys, signaling and security
