View larger
Images are for illustrative purposes only. Please refer to data sheet for details

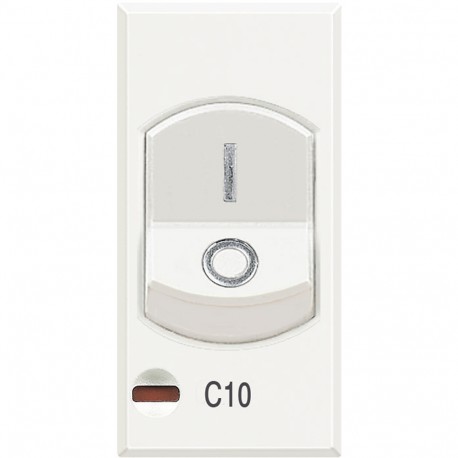

HD4301A10 BTCINO AX-MAG, 1P+N 10A 3KA 1M WHITE
HD4301A10
HD4301A10
BTICINO
1 Pcs.
AX-MAG, 1P+N 10A 3KA 1M WHITE
AX-MAG 1P+N 10A 3KA 1M BLAN
Circuit breaker circuit breaker Axolute - 10 A - 1 module - White
Axolute automatic circuit breaker - 10A - 1mod - White
Automation > Miniature circuit breaker (MCB)
AXOLUTE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Circuit breakers residual current protection - Features a shaded pole - Indicator of contacts open and closed - 10 - Power of court: 3,000 - 1 module - WhiteGeneral characteristics
Axolute - lighting, buoys, signaling and security| Feature Name | Feature Value |
|---|---|
| Connectable conductor cross section solid-core (EF007337) | 2.5 mm² |
| Ambient temperature during operating (EF007515) | -5 °C |
| Degree of protection (IP) (EF005474) | IP20 |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Number of protected poles (EF005548) | 1 |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 44.5 mm |
| Number of poles (total) (EF008618) | 1 |
| Width in number of modular spacings (EF002950) | 22.3 |
| Rated current (EF000227) | 10 A |
| Current limiting class (EF002568) | 1 |
| Release characteristic (EF000889) | C |
| Rated voltage (EF000228) | 230 V |
