View larger
Images are for illustrative purposes only. Please refer to data sheet for details

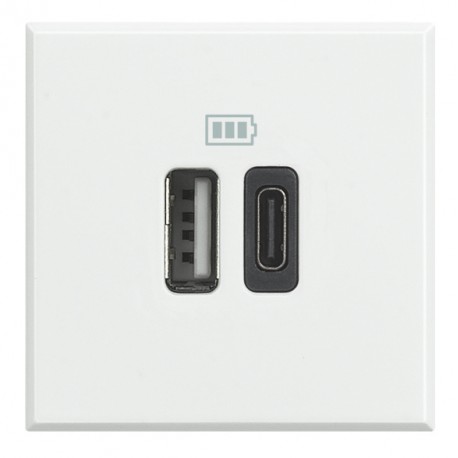

HD4287C2 BTCINO AX-USB CRADLE+C 3A/5V 2M WHITE
HD4287C2
HD4287C2
BTICINO
1 Pcs.
AX-USB CRADLE+C 3A/5V 2M WHITE
AX-BASE USB A+C 3A/5V 2M BLAN
Cradle USB charger (+C) Axolute - 3 To - 5 V - 230 V - 2 modules - White
USB Charger Base (A+C) Axolute - 3A - 5V - 230V - 2mod - White
Automation > USB power supply
AXOLUTE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Universal chargers USB - Compliant to the standard IEC 62684-2011-01 - Allow the quick charging of mobile phones, tablets, smartphones, MP3, MP4 - Release space for bases of power - Consumption standby < 0.1 W - Class II TBTS - According to the EEC directive on the harmonization of the standard recharging of portable terminals and the reduction of chargers, mobile - Supplied without cable - 5 V - 230 V - Charger dual-USB 3 A - Type + C - 2 modules - WhiteGeneral characteristics
Axolute - USB chargers| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 100 V |
| Device depth (EF008810) | 42 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of ports USB-C (EF017049) | 1 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Output voltage (EF003933) | 5 V |
| Power consumption (EF000346) | 0.066 W |
| Device width (EF008808) | 45.1 mm |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | White |
| Number of ports USB-A (EF000997) | 1 |
| RAL-number (EF000116) | 9003 |
| Max. output current (EF001315) | 3000 mA |
| Frequency (EF000416) | 50 Hz |
