View larger
Images are for illustrative purposes only. Please refer to data sheet for details

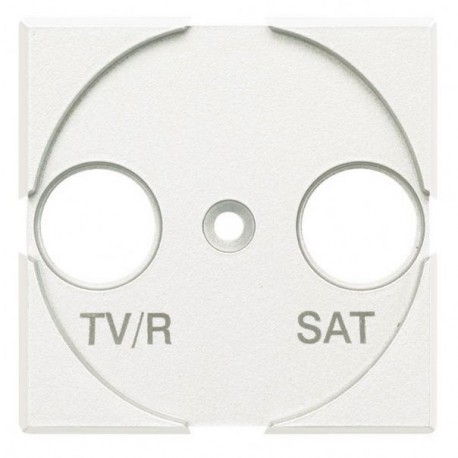

HD4204 BTCINO AX-FRONT TV-R 2M WHITE
HD4204
HD4204
BTICINO
1 Pcs.
AX-FRONT TV-R 2M WHITE
Front TV-R universal Axolute - White - 2 modules
Axolute Universal TV-R Front - White - 2mod
Automation > Insert/cover for communication technology
AXOLUTE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Front of television - universal Allows installation in the main bases of television-market - Fixing by the central part by means of a screw Front TV-R - 2 modules - WhiteGeneral characteristics
Axolute - bases of tv, phone, and computer connectors video/audio| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Glossy |
| Type of fastening (EF002442) | Mounting with screw |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| With imprint (EF004048) | No |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | No |
| Luster terminal (EF003868) | No |
| Surface protection (EF000139) | Lacquered |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | No |
| RAL-number (similar) (EF003882) | 9003 |
| Utilization (EF000133) | Other |
| Suitable for degree of protection (IP) (EF006755) | Other |
| Device depth (EF008810) | 6 mm |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| Imprintable label (EF001519) | Without indication field |
| Device width (EF008808) | 22.5 mm |
| Assembly arrangement (EF000005) | Central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | White |
